Description

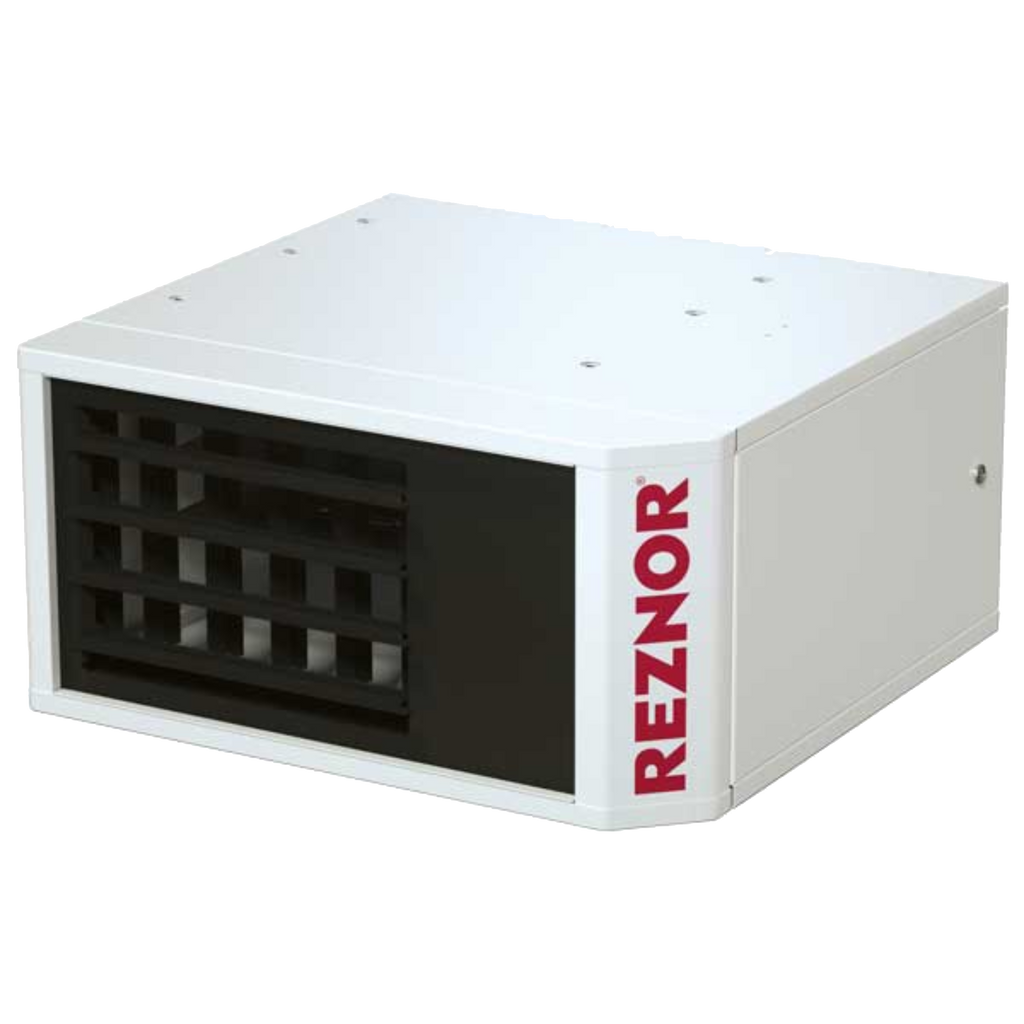

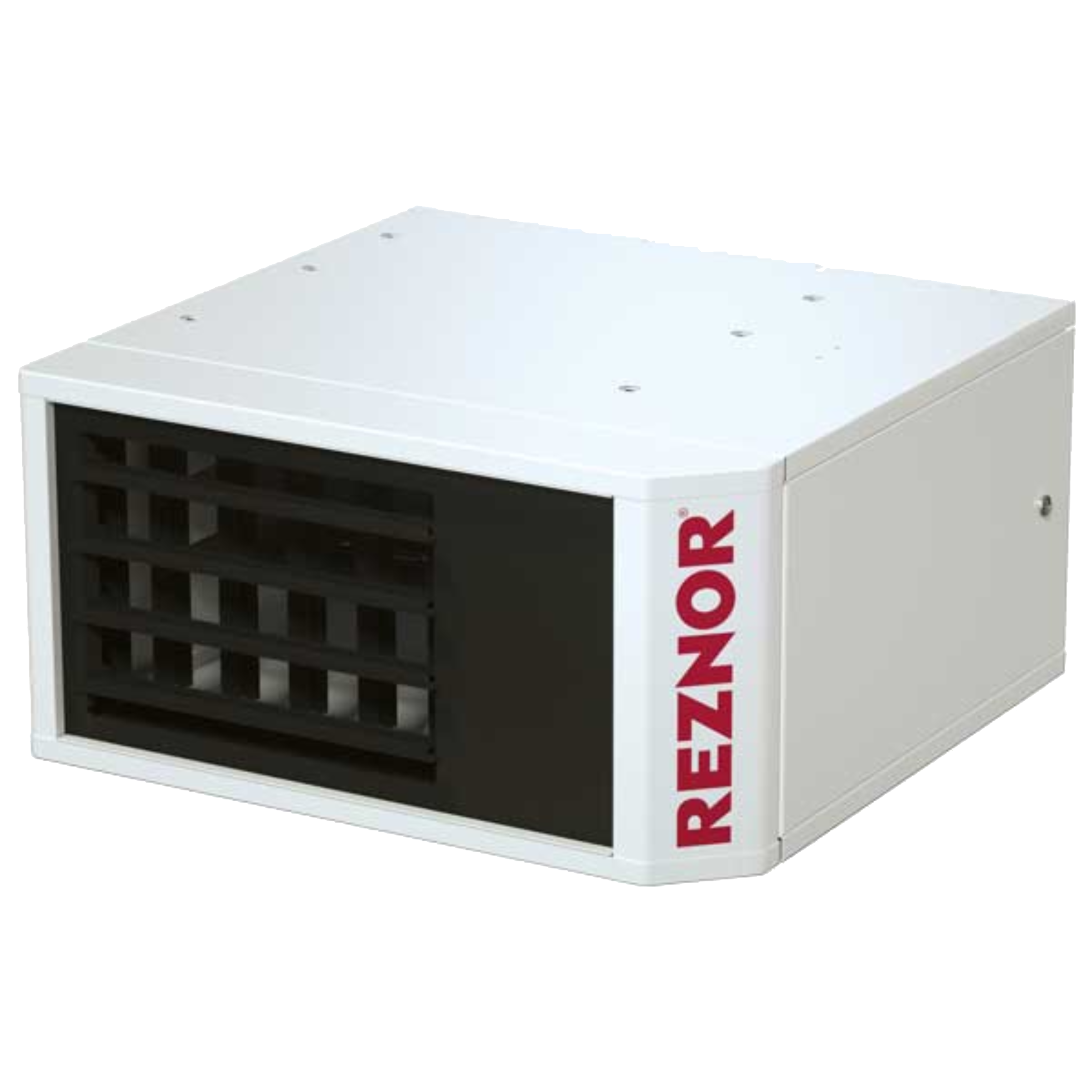

UDX Series are power vented, low static axial fan commercial/industrial unit heaters with 82 - 83% thermal efficiency. Reznor® model UDX gas-fired unit heaters are great for space heating applications. These units are power vented to eliminate heat losses up the flue pipe. Model UDX is available in 14 sizes ranging from 30,000 to 400,000 BTUH gas input and is approved for installation in the United States and Canada by ETL. For air circulation, model UDX uses an axial propellor fan.
UDX unit heaters feature a two-tone black and white powder-coated scratch-resistant paint scheme. Each unit has clean rounded corners and edges with no visible screws or fasteners. Model UDX unit heaters provide the same superior performance customers have relied on for more than 100 years along with added features that make servicing the unit easier, installation safer, and improving monitoring capabilities.
Each size cabinet is easily suspended from either 2 or 4 suspension points. Or, an optional hanger kit for Sizes 30-125 allows for ceiling mounting. The low voltage terminal strip on the outside of the cabinet makes connecting control wiring easy with no panels to remove. The addition of a “G” terminal to the strip, along with the new design of the circuit board, allows for fan-only operation (without adding relays).
The UDX can be used in many markets including Retail, Showrooms, Workshops, Schools, Exhibition Halls, Hospital/Medical, Sports Facilities, Water Treatment, Transportation Terminals, Industrial Manufacturing, Warehouse/Distribution, Food & Beverage, Residential
