Description
H2O Low-Profile Hot Water Unit Heater

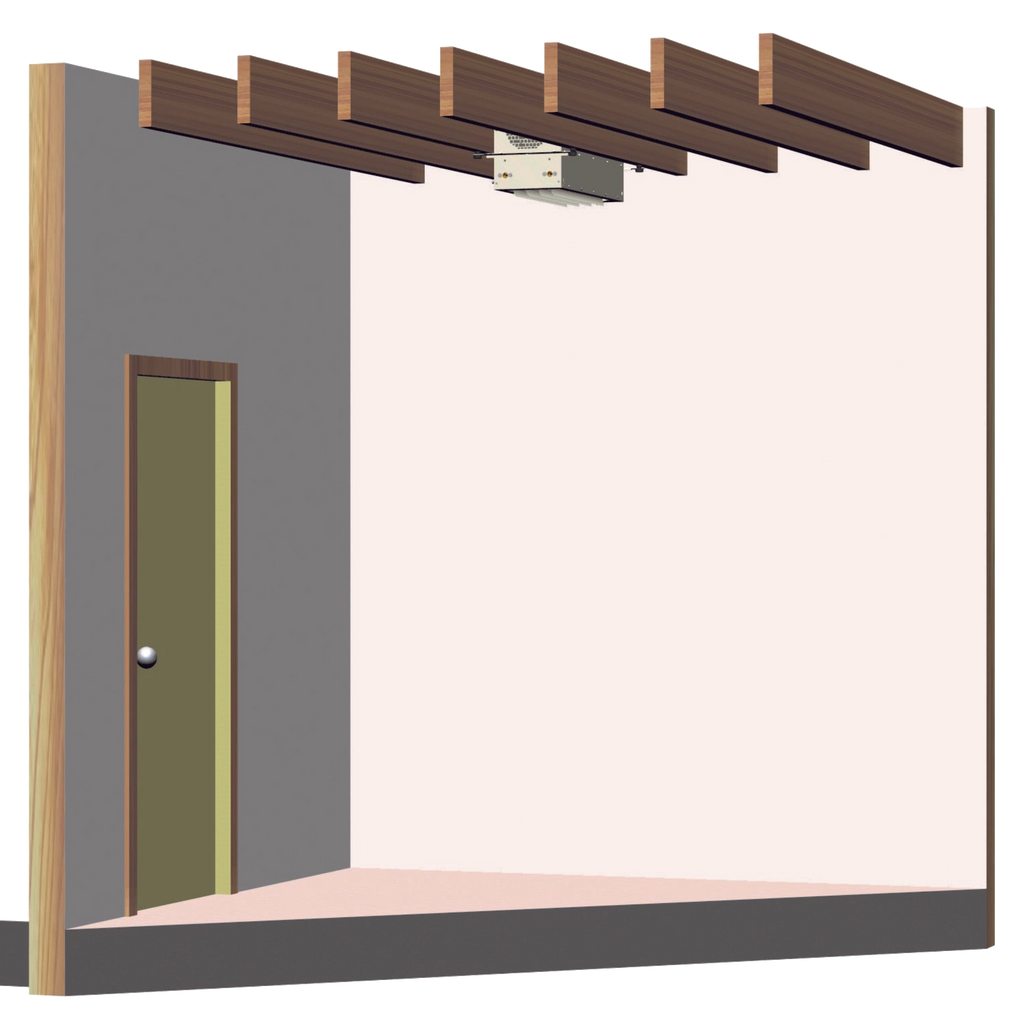

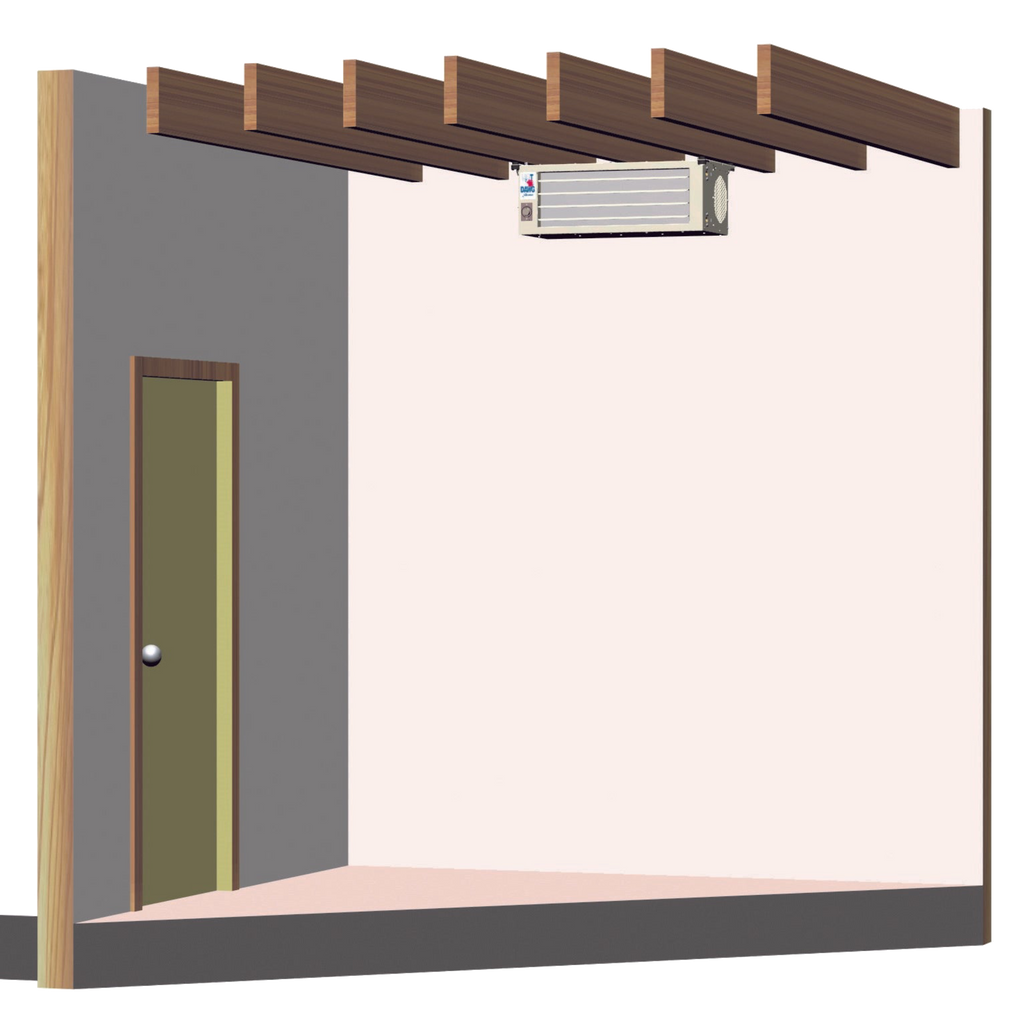

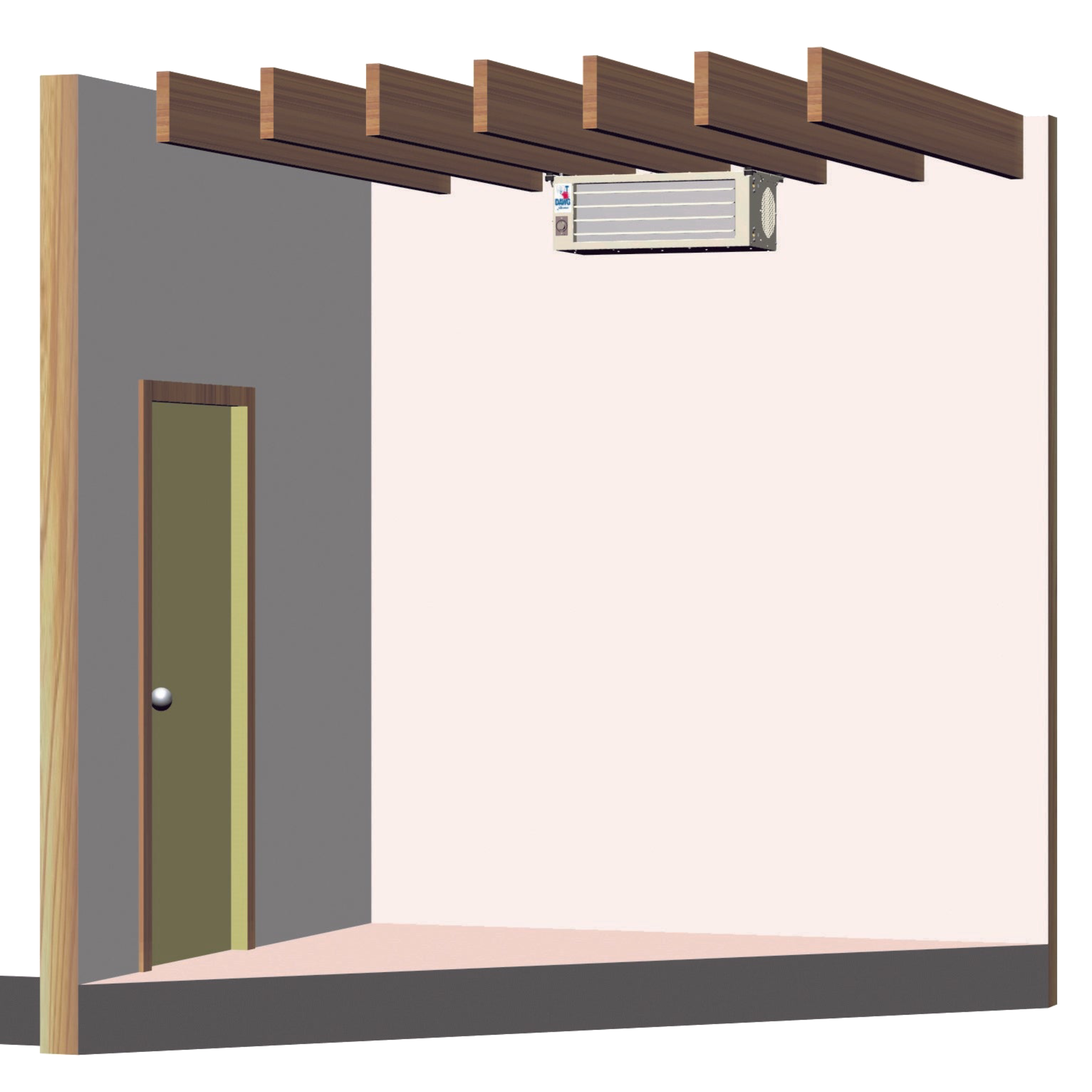

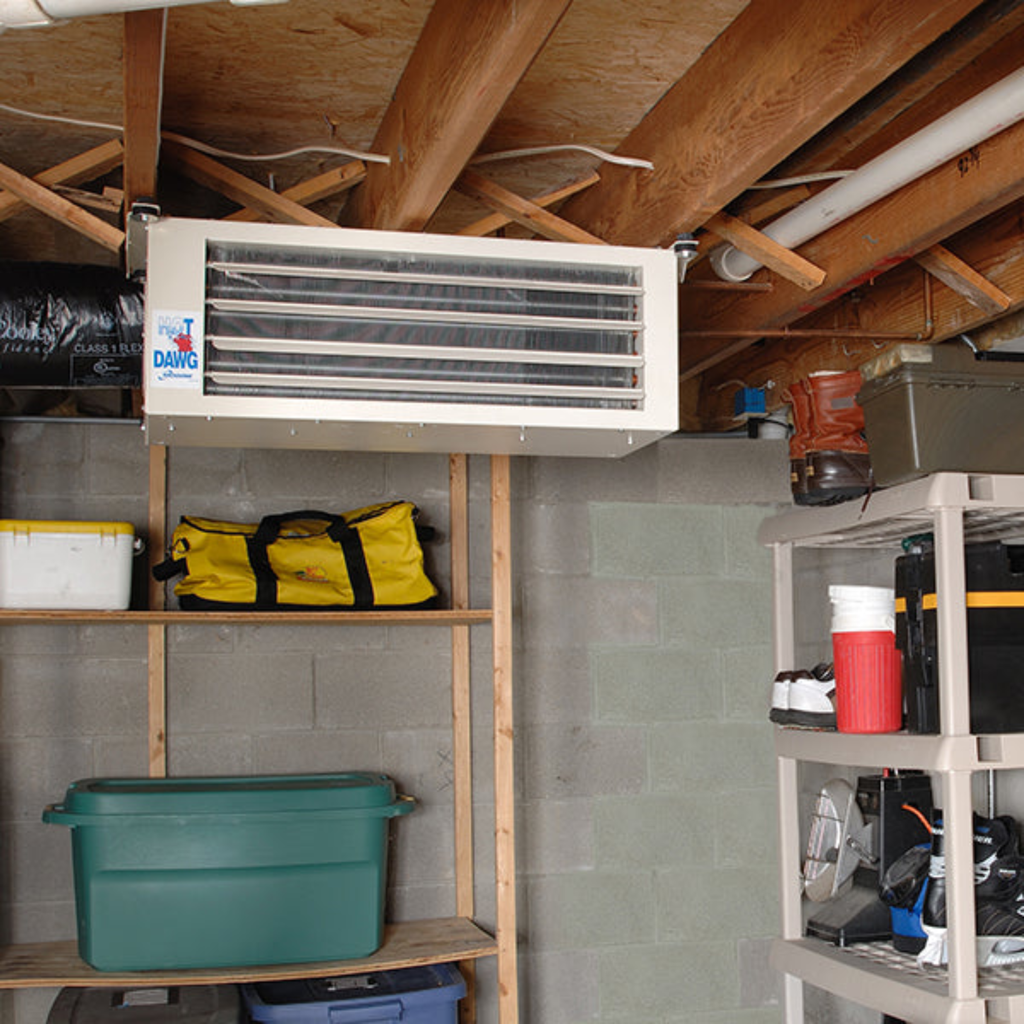

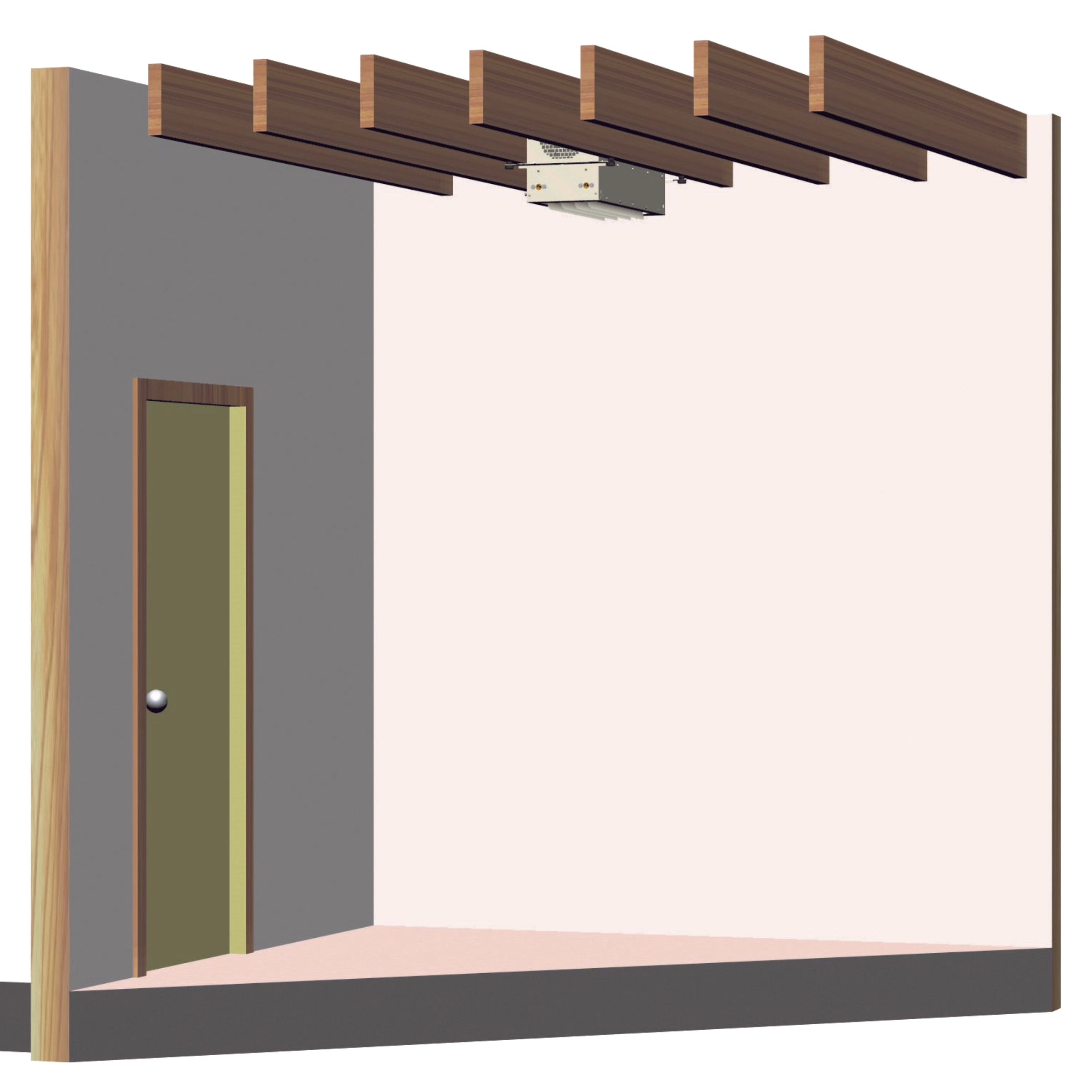

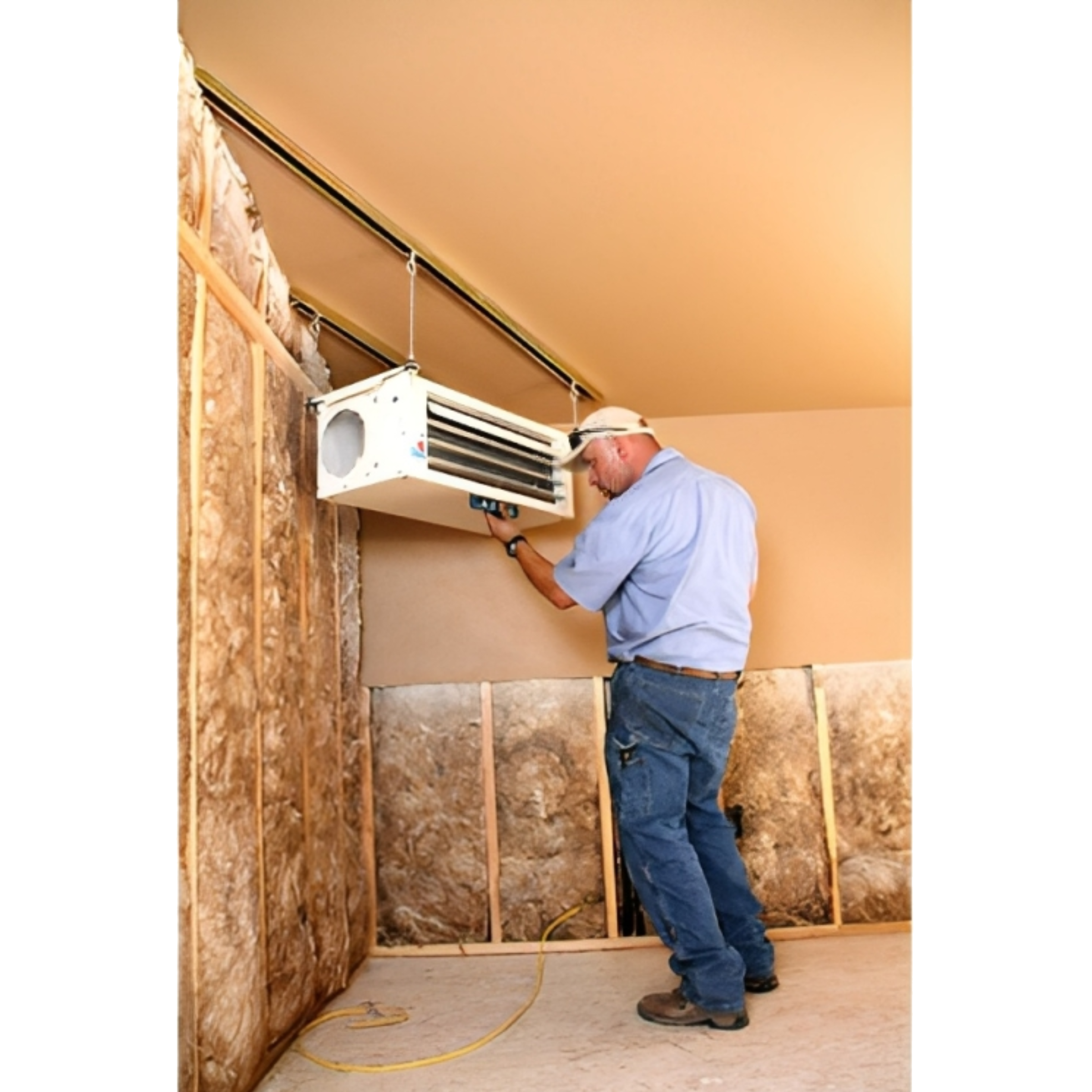

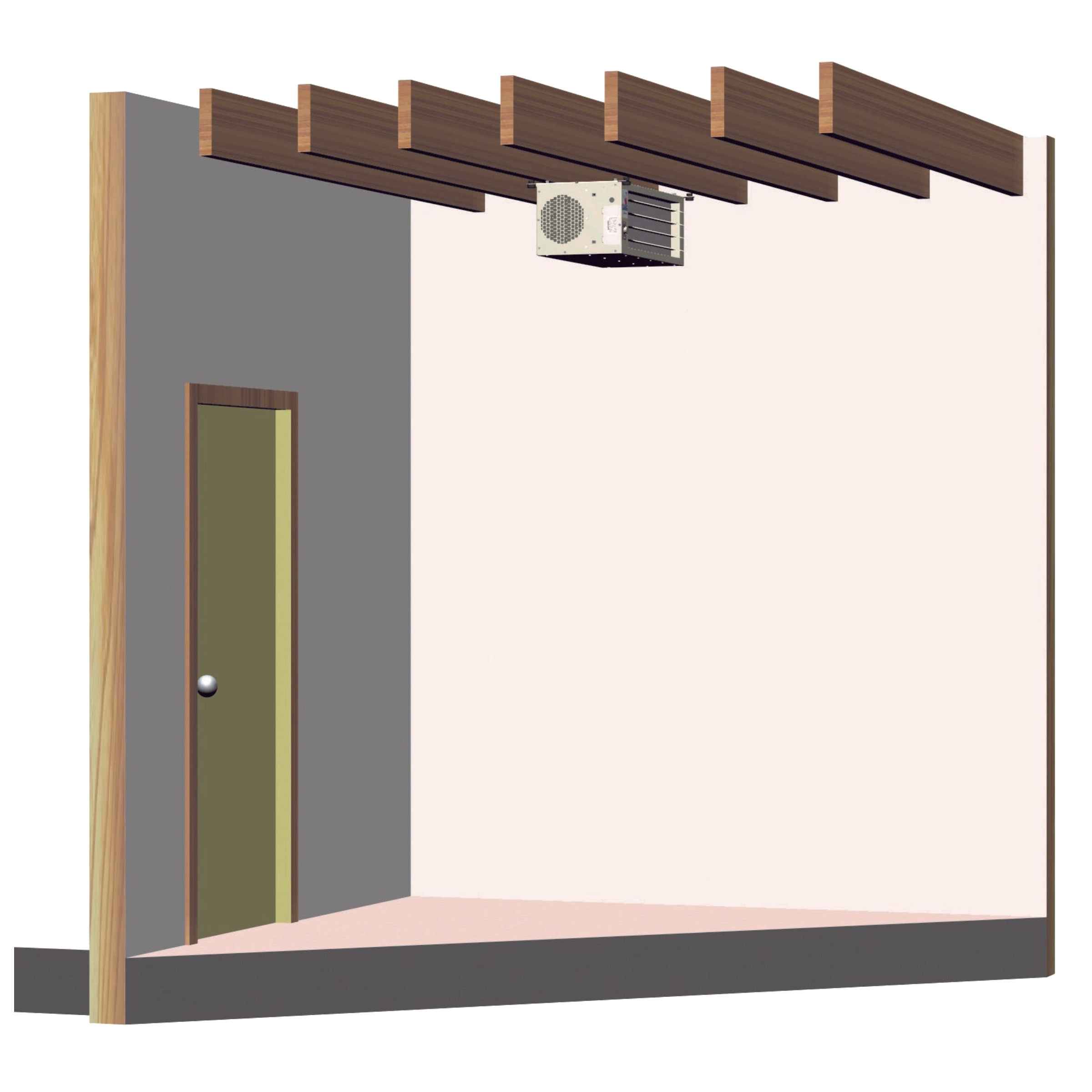

Modine’s Hot Dawg® H2O is the only low-profile residentially-certified hot-water unit heater in North America. Available in two sizes, the Hot Dawg® H2O offers a one-of-a-kind heating solution for your garage or workshop, as well as commercial, industrial, and institutional installations. With side access piping and all moving parts enclosed, the Hot Dawg® H2O has the versatility to be mounted almost any way you would like, allowing for air to be delivered vertically or horizontally.
Modine’s Hot Dawg® H2O is available in 3 model sizes. All models run off your boiler system, ground source heat pump, or hot water heater.
All units are listed by ETL as design certified for use in both the US and Canada to the UL 1995 - latest revision and CSA C22.2 No. 236 Standards for Heating and Cooling Equipment for safe operation, construction, and performance.
Electrical connections are standard on the left with piping on the right. Access sides can be easily reversed in the field by simply flipping the unit over.
Copper tubes are mechanically expanded into aluminum fins for maximum heat transfer.
