Description

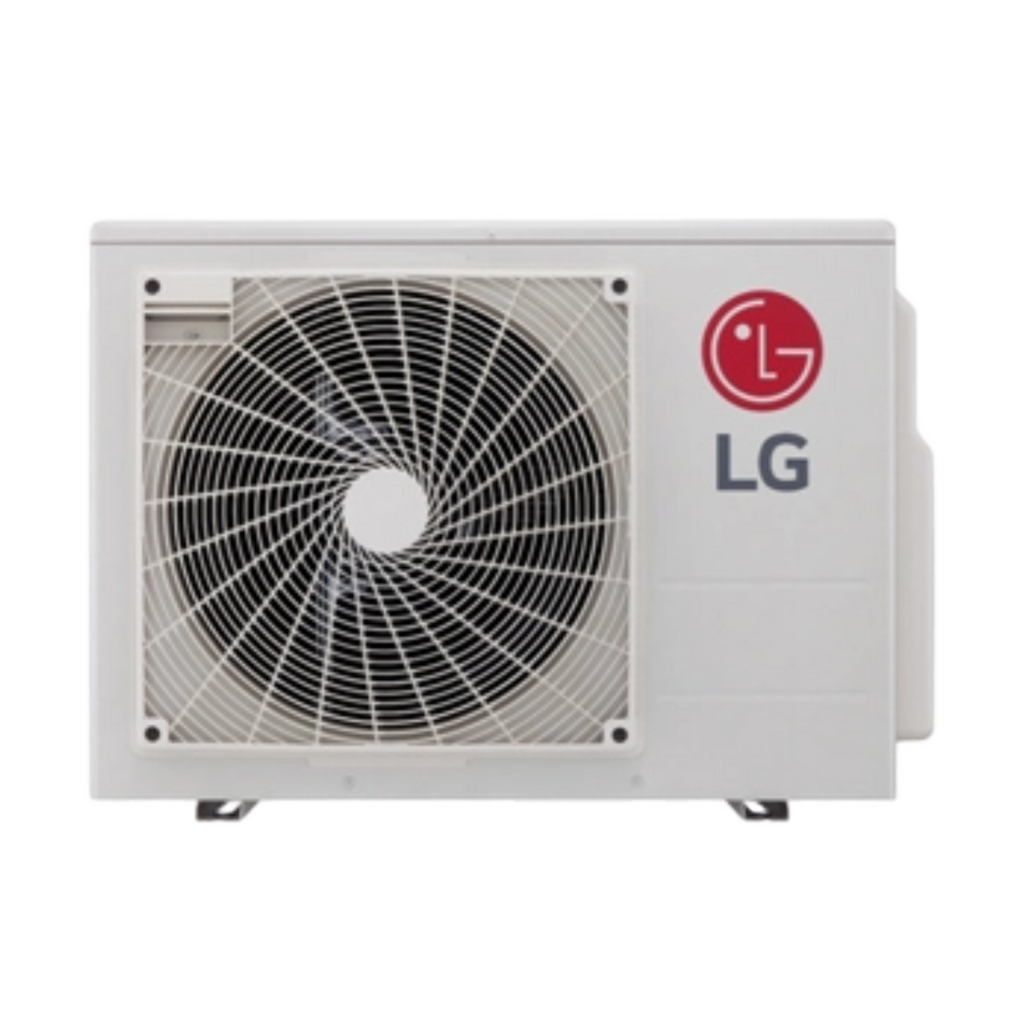

Out Door Unit: (LMU240HV)
LG's Flex Multi-Split three-Zone air conditioner system gives you the opportunity to install three independently operated, indoor units virtually anywhere in your home. The LMU240HV offers a cooling capacity of 23,600 BTUs (with non-ducted units) and a combined connectivity BTU rating of up to 33,000. Although this is a three-port system, a minimum of two units must be connected. Connectable indoor units include both wall mounted and ceiling units. Whether connected with non-ducted, ducted units or a combination, the system maintains its Energy Star Qualification.
The LMU240HV is an Energy Star Rated mini-split air conditioner and heat system that is capable of year-round comfort control in most of the United States. With its expanded cooling and heating parameters, it is capable of heating when outdoor temperatures are as cold as -4°F. It is capable of heating when outdoor temperatures are as cold as -4°F. If there is a need to keep your space cool, the cooling capabilities are great on this system as well. The system can operate in the cooling mode with outside temperatures as low as 14°F. With the addition of the optional drain pan heater (PQSH1203), the cooling operation can be enhanced to -4°F.
Standard features of the LMU240HV outdoor unit include an energy efficient variable speed inverter compressor, defrost/deicing capabilities, three-minute restart delay, and a self-diagnosis system. The outdoor unit also features a soft start to reduce power surges on the electrical system. It operates when the outside temperature is as low as 14°F in the cooling mode and from -4°F to 64°F in the heating mode. To top it all off, it uses environmentally friendly R-410A refrigerant and is pre-charged for up to 98’ of line.

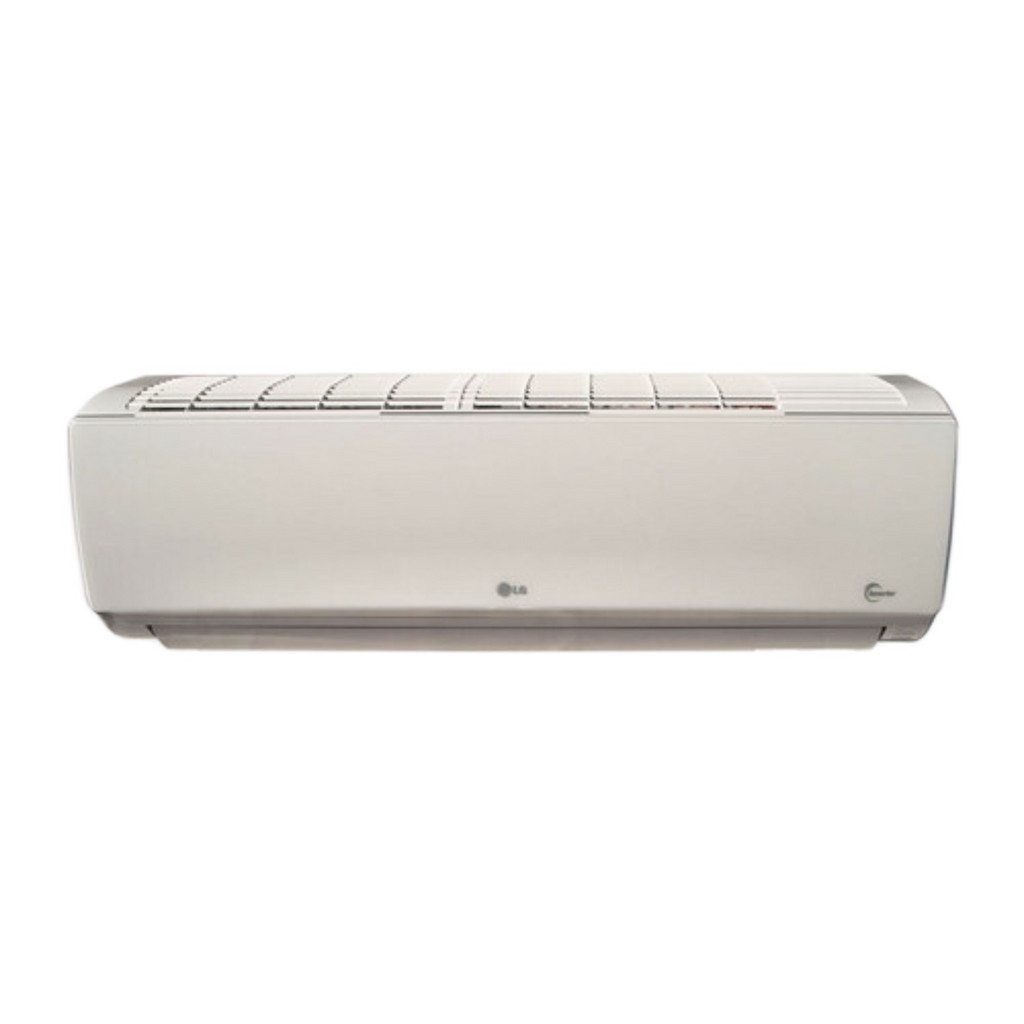

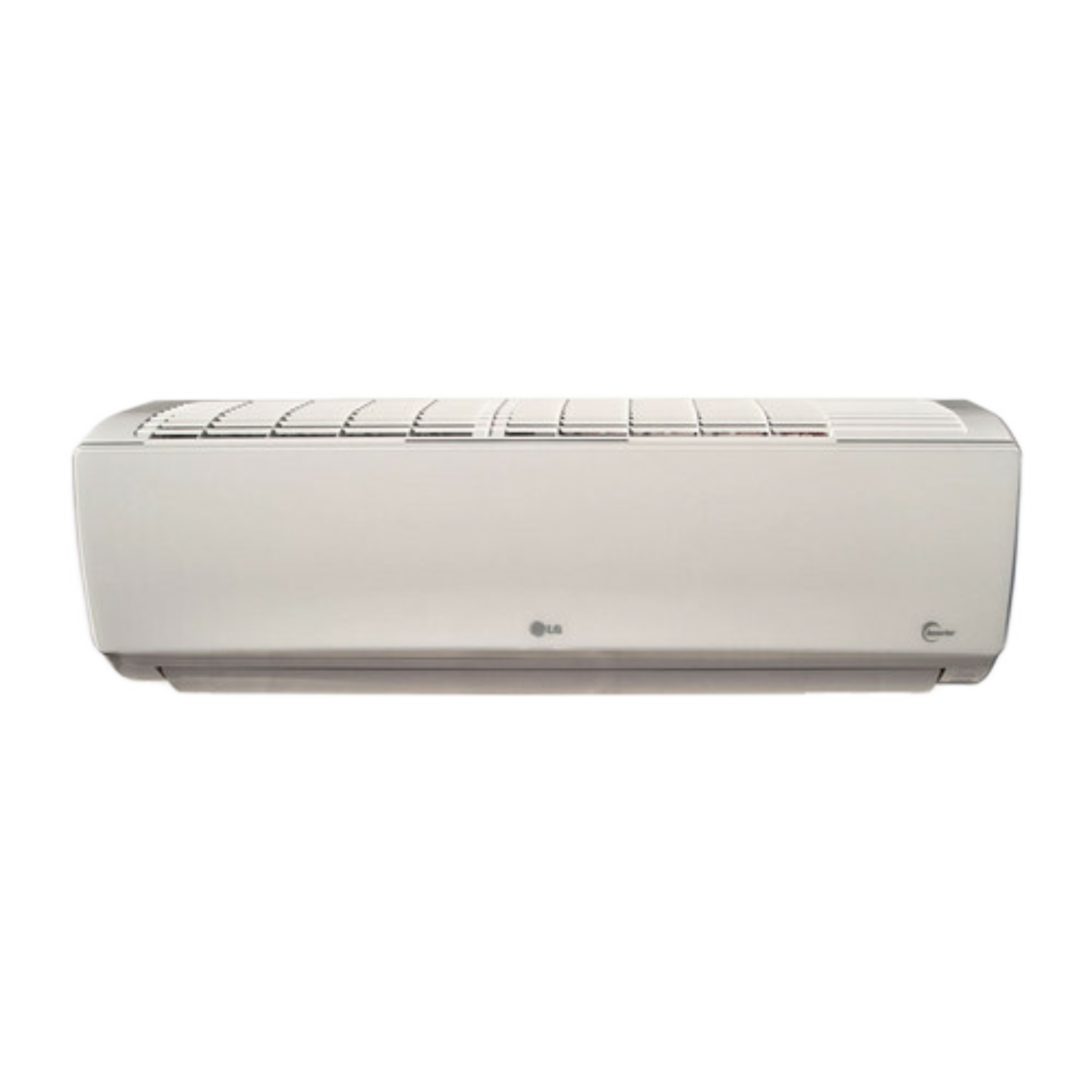

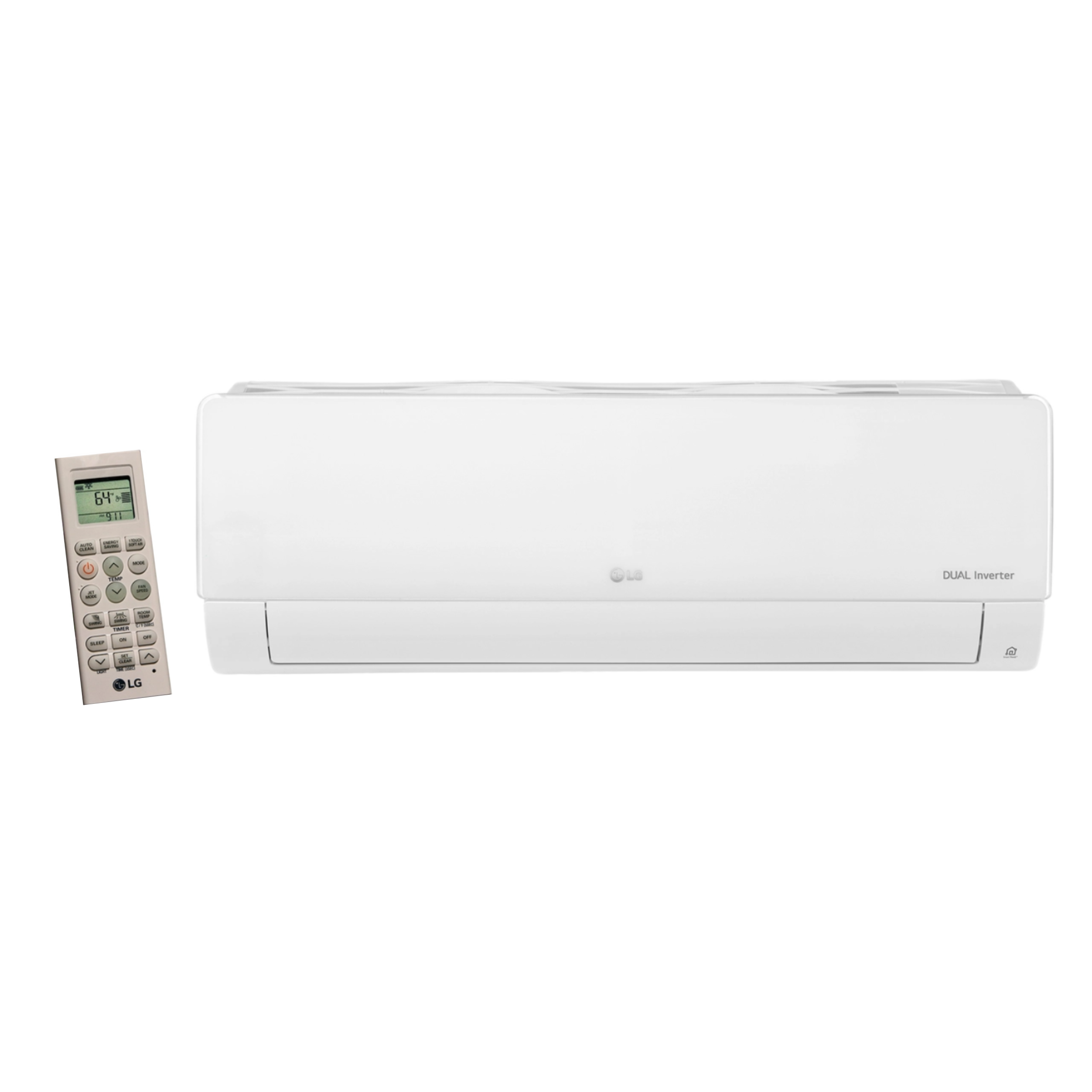

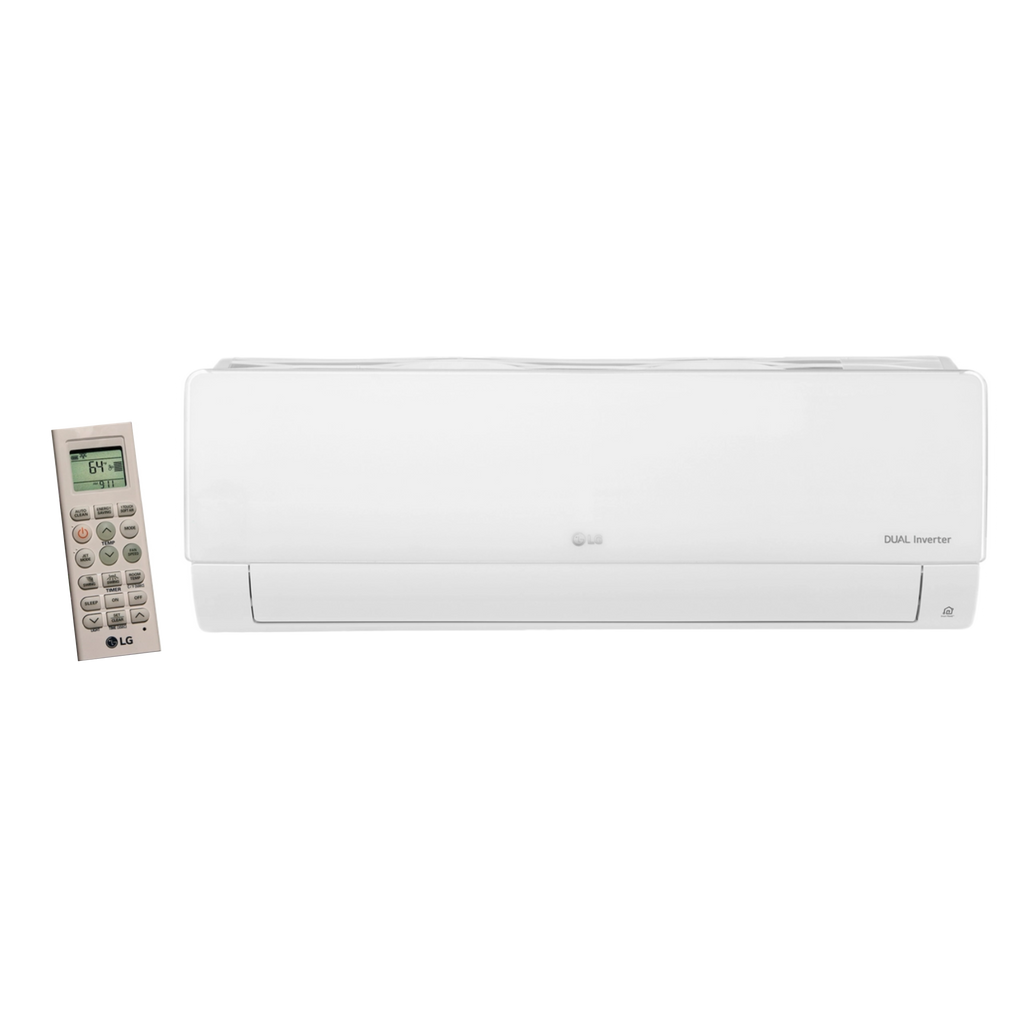

Indoor Units: (LMN079HVT, LSN090HSV5 & LSN120HSV5)
The standard wall unit comes in a white finish and will blend quietly and seamlessly into any room decor. It is installed high on a wall. It connects to the outdoor compressor through a small opening in your wall, drilled behind the unit. The line set and wire (required, sold separately) are sent through the opening and connect to the compressor outside. A wireless remote is included for convenient operation from anywhere in the room. These units have built-in WiFi
