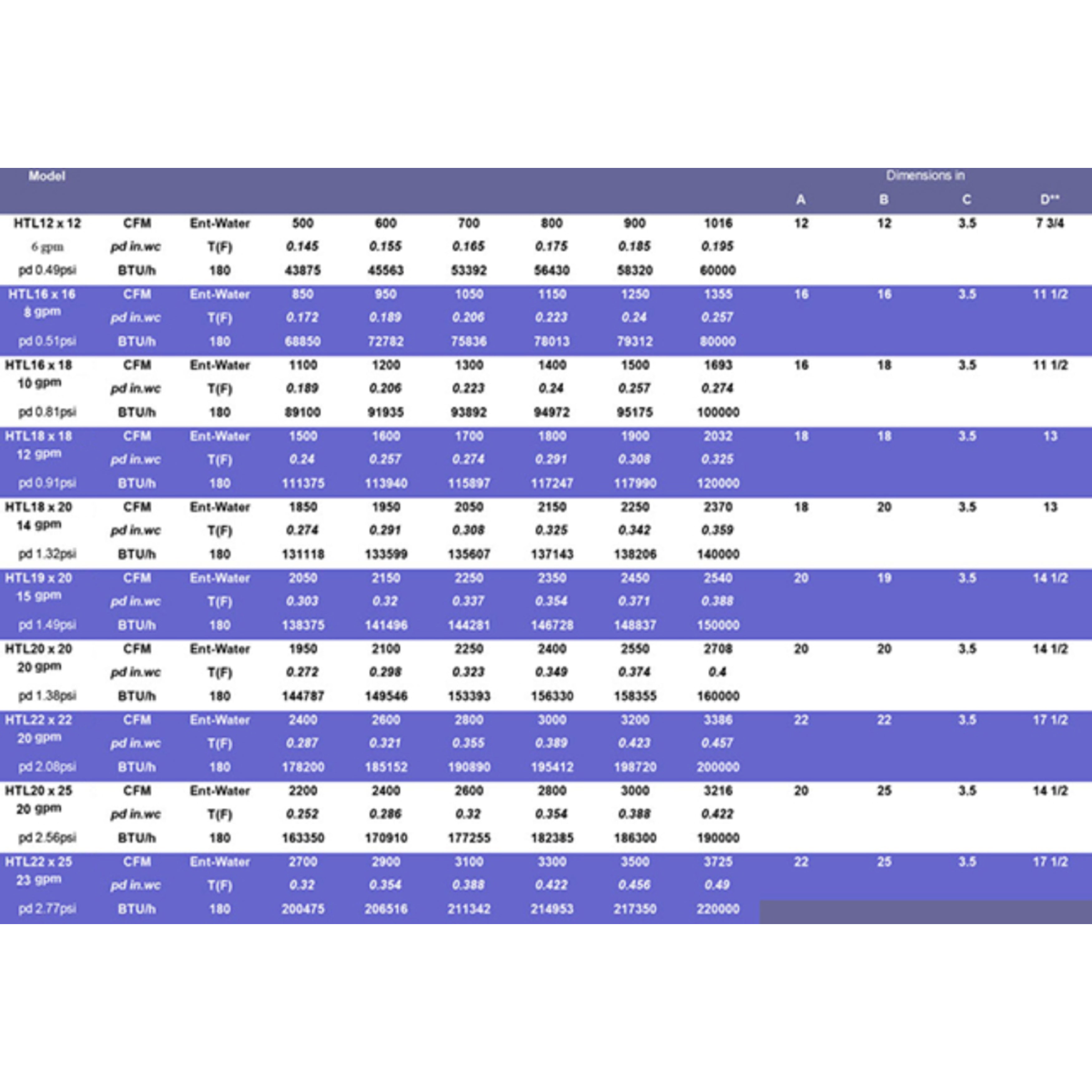

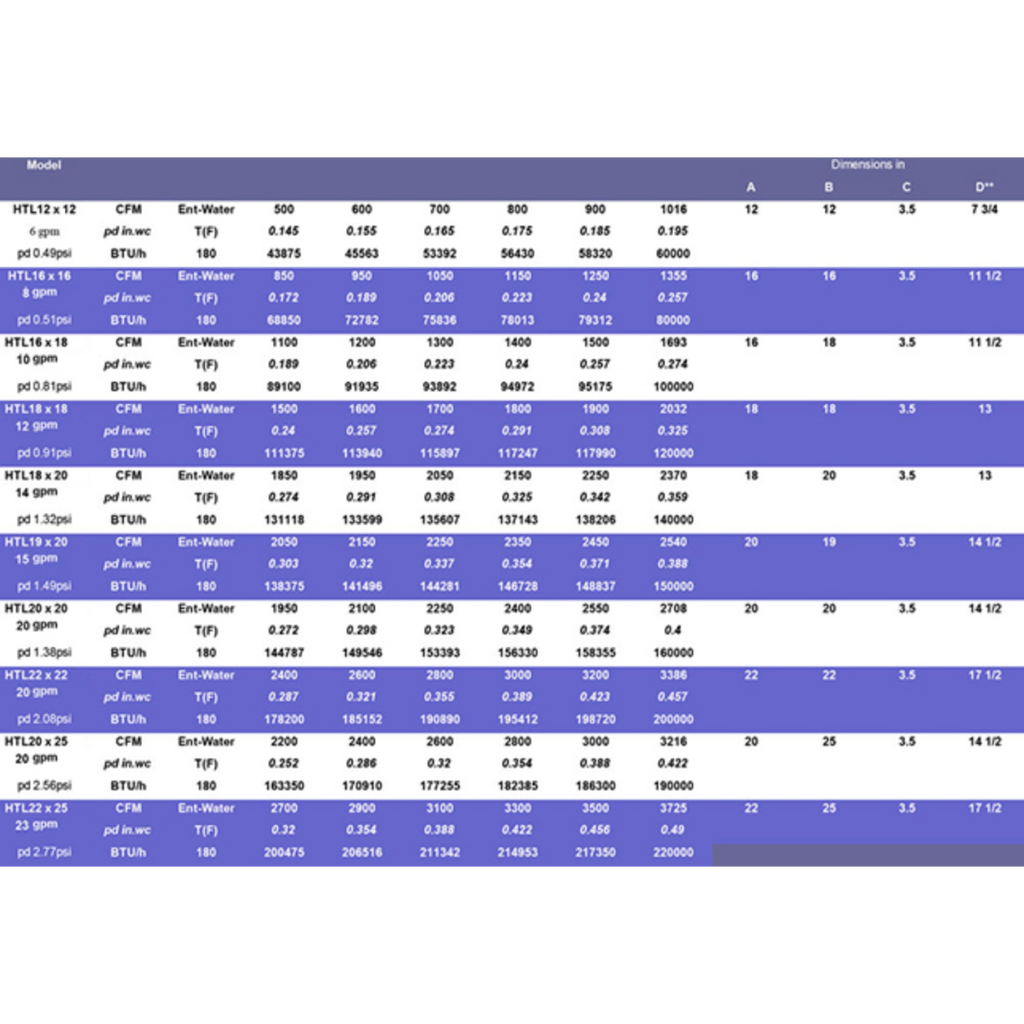

HTL 20 X 20 Hydronic Coil Air to Water Heat Exchanger 20GPM, PD 1.38 PSI, 144787 BTU/h to 160000 BTU/h

• HTL Hydronic Coil are used for many heating and cooling applications. Heat transfer is maximized by using 3/8? copper tubes running through a high density of aluminum fins that are a density of 12 fins per inch. Despite the high fin density pressure drop is minimized through the coils.
• Heat loads are 50,000-60,000 Btu per square foot
• Coil Tube is made of 3/8? seamless copper
• Fin Plate is made of Aluminum
• The frame core is galvanized steel
• Manifold is made of copper and has a 1? ID
• The Tube is rated at 175 psig/350F
• Plate Fin Spacing is 12 per inch
• Connections 1? ID soldered
• HTL Hydronic Coil can be used for condominiums and apartment buildings, residential building heating, hybrid heating systems, dehumidification, air conditioning
