Description

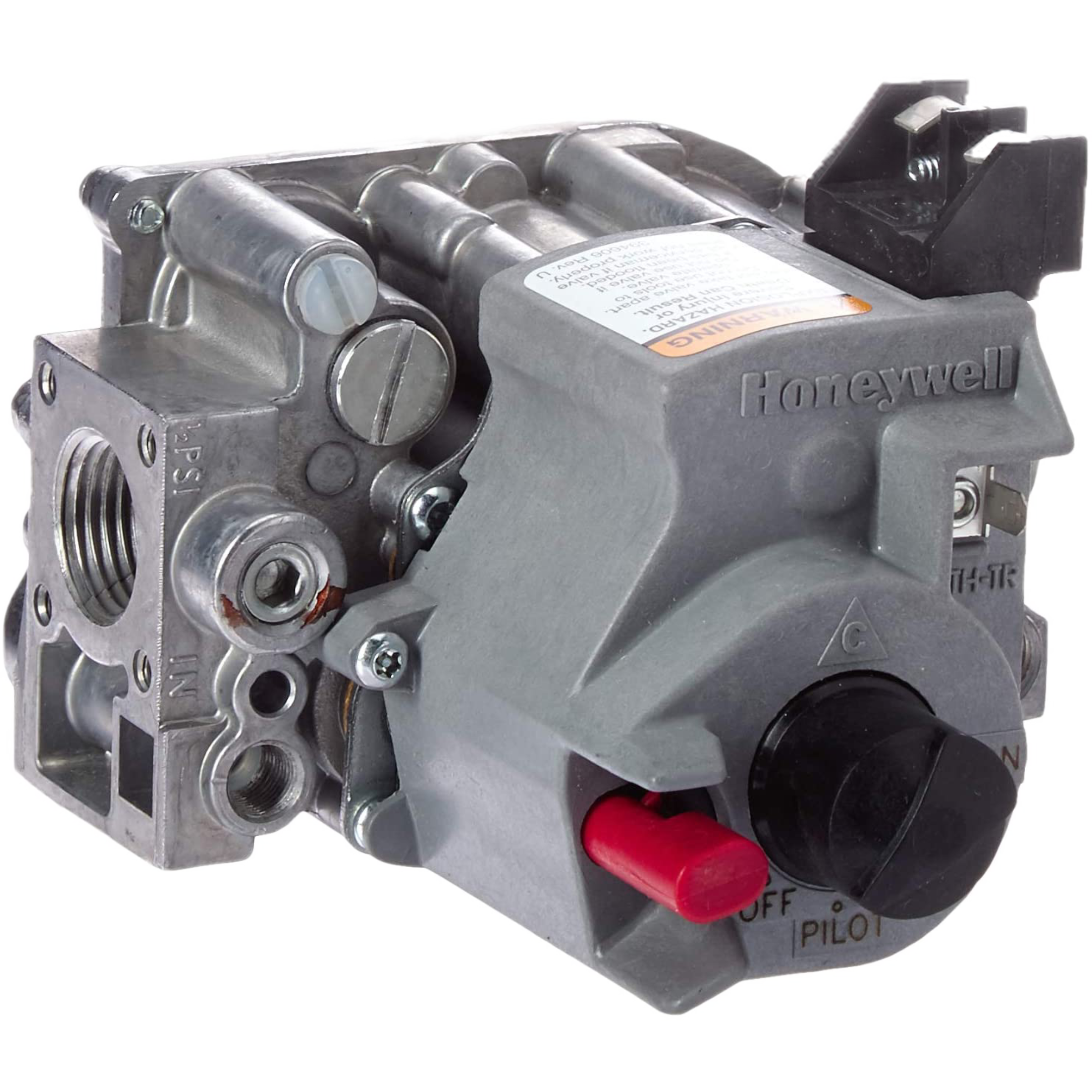

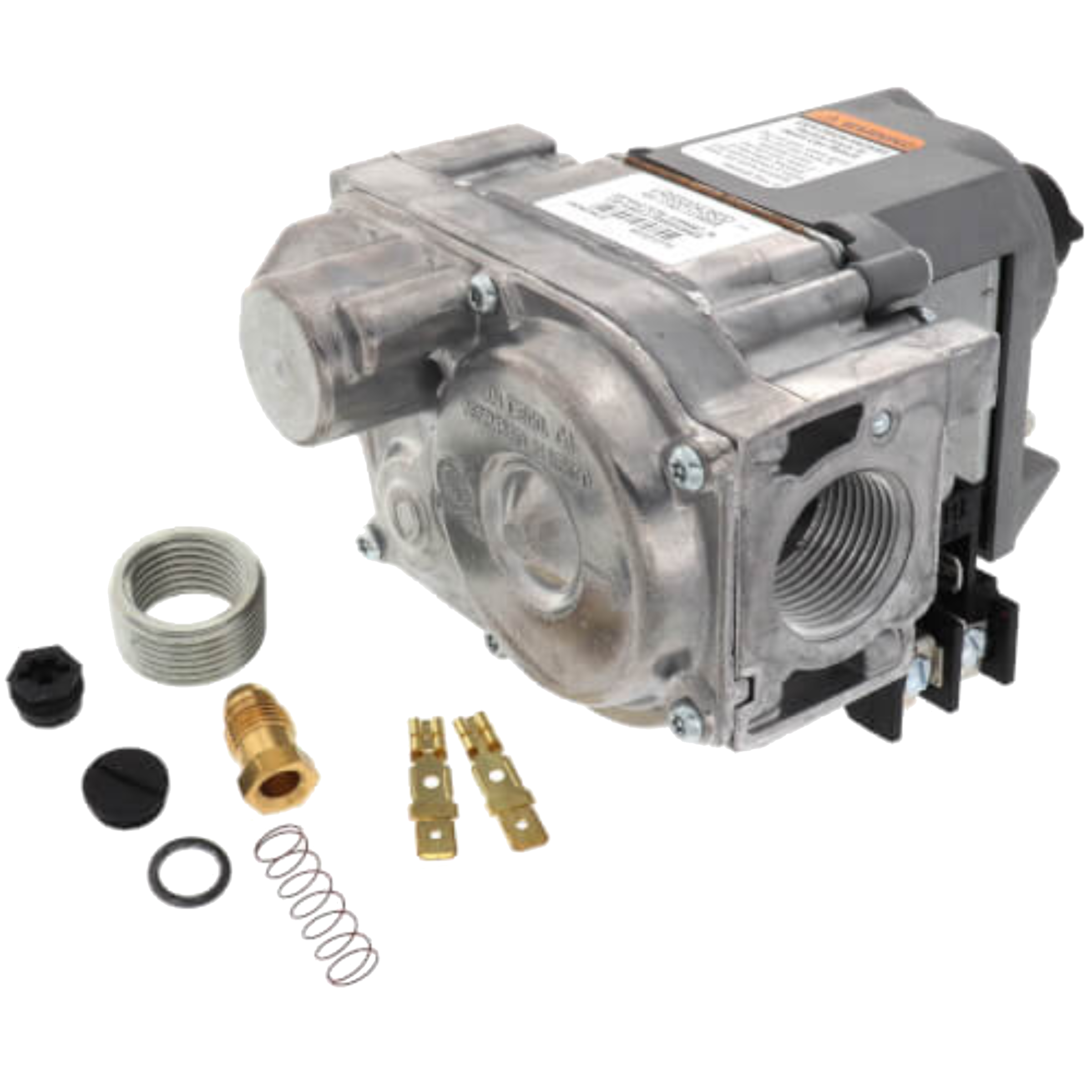

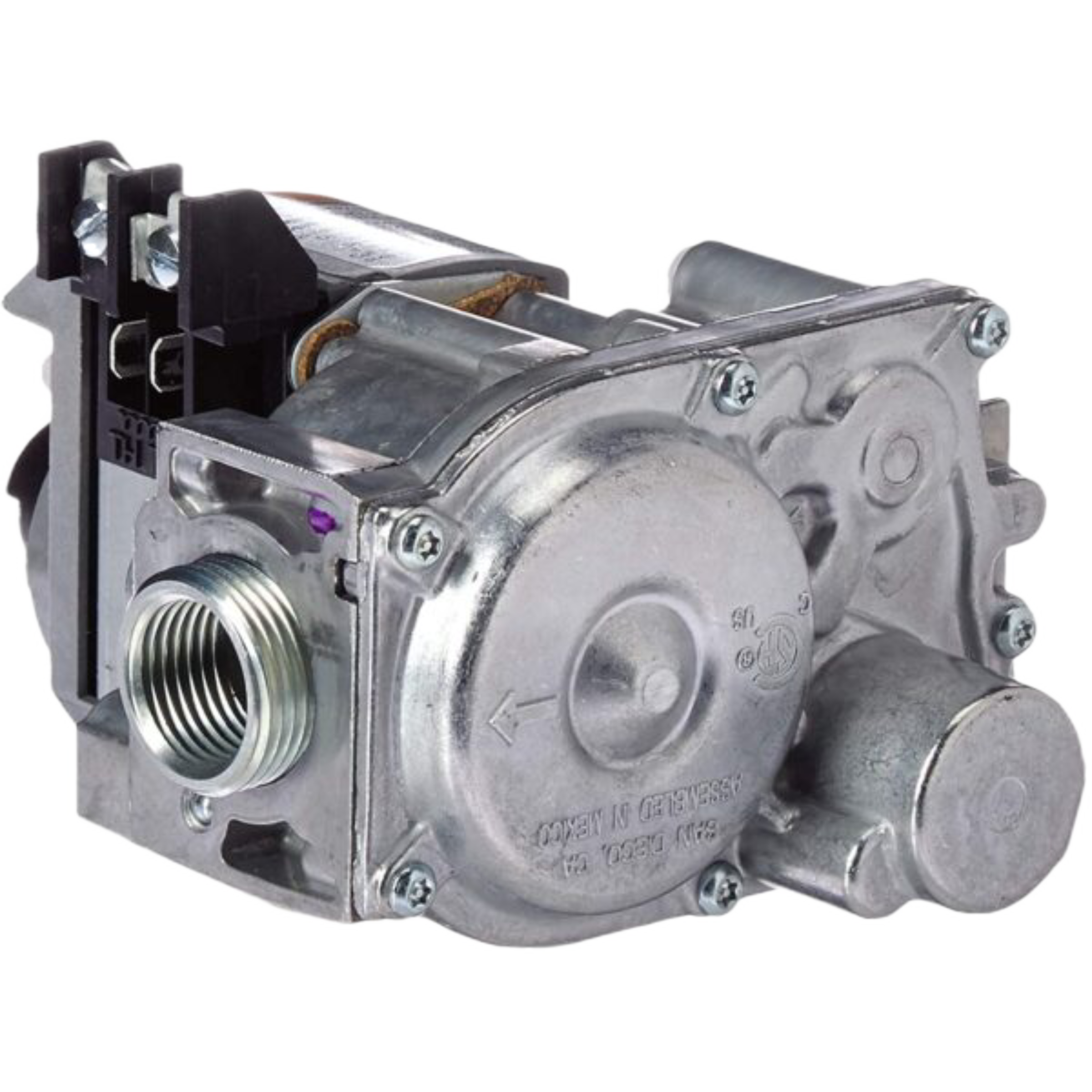

Combination gas control for use in 24 Vac gas-fired, standing pilot appliances with capacities from 30 to 300 cfh. Control includes safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment. Provides two automatic valves.
Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends. Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted. Meets codes requiring dual safety shut-off.
All adjustments, wiring connections and pilot outlet are accessible from top of control. Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
