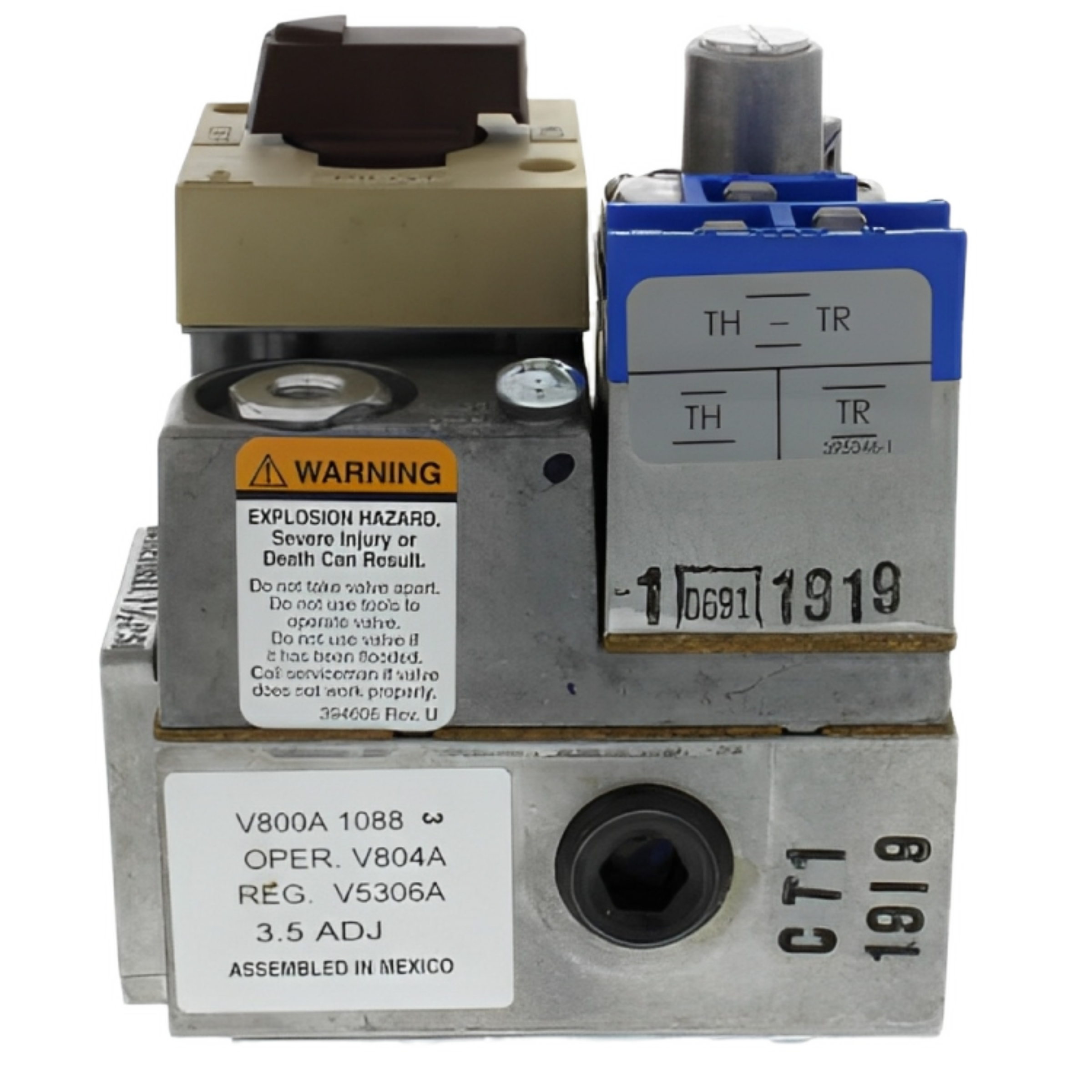

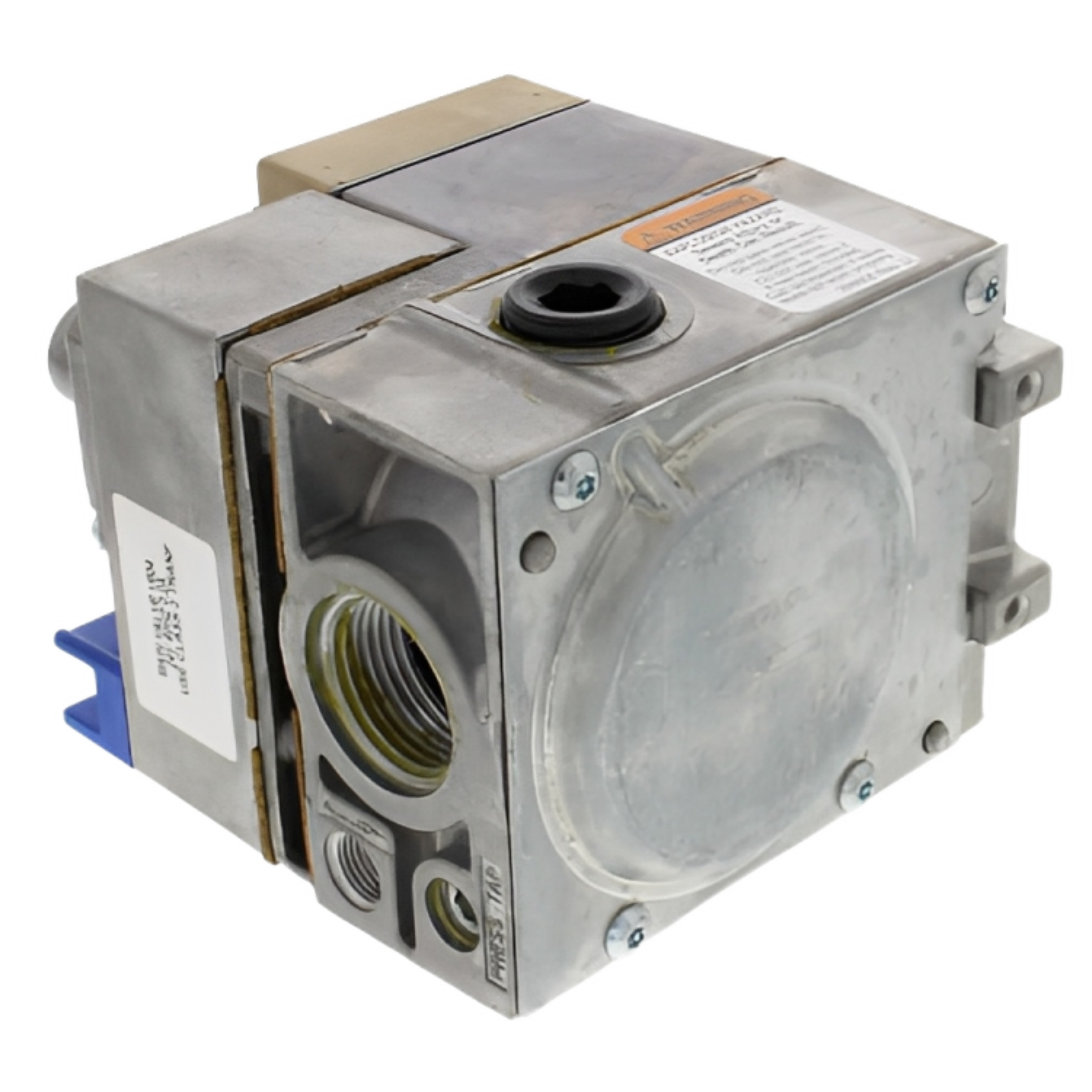

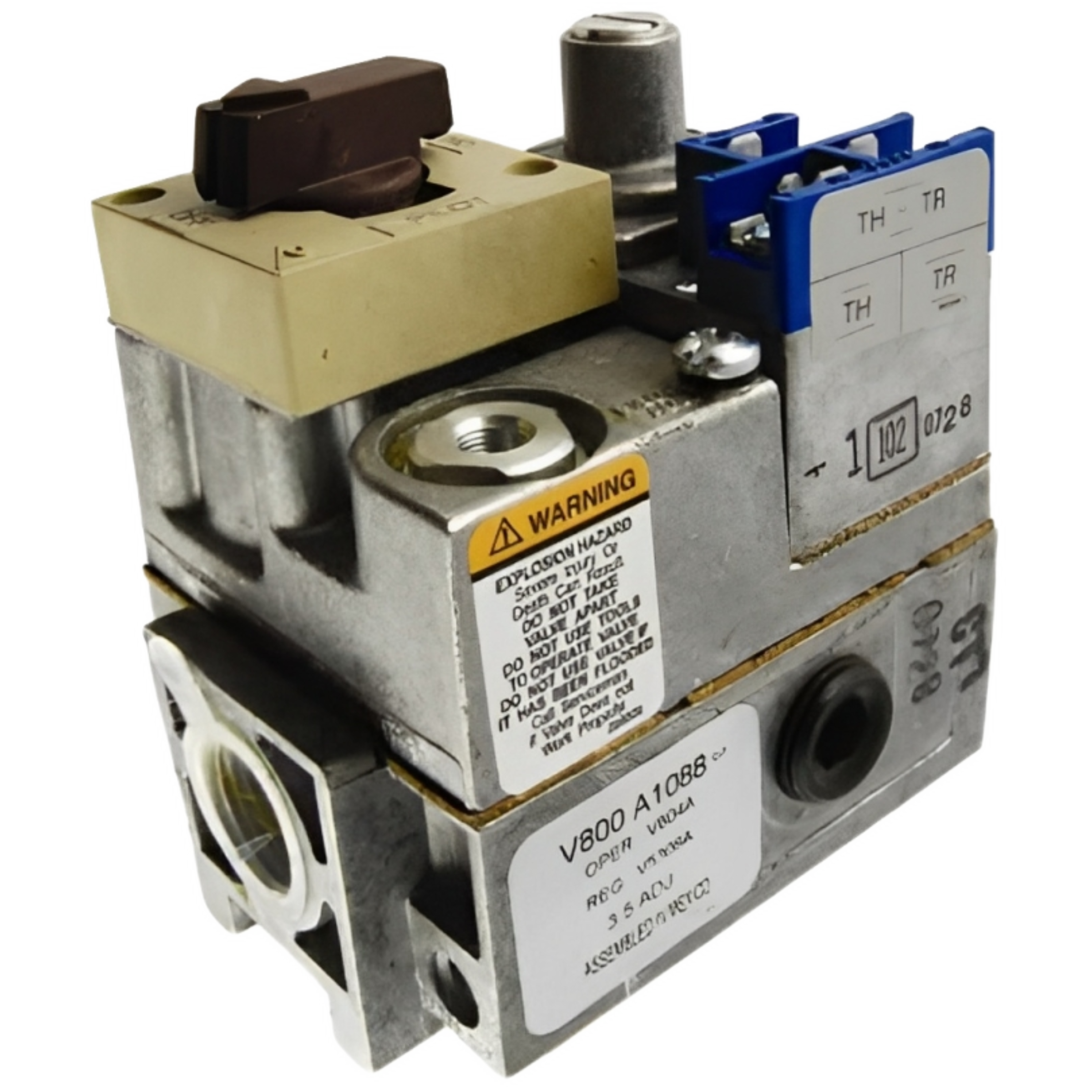

V800A1088 Honeywell Home Standard Opening, Standing Pilot Gas Valve, 24 VAC, Single Stage, 3/4 x 3/4" Set 3.5" WC, With 1/2" side outlets, Pressure Ratings 1/2 Psi, Max Capacity 425,000 BTU/hr

Used on gas fired standing pilot appliances with 30 mV thermocouple. These gas controls include a manual gas valve, safety shutoff, single millivoltage automatic operator, pressure regulator, pilot gas filter and flow adjustment, pressure tapping, and thermocouple connector.

Includes: Q340 Thermocouple; Two 3/4" x 1/2" reducer bushings; One 1/2" x 3/8" reducer bushing; Natural to LP Conversion Kit.

Inlet/Outlet Size (in.)3/4 in. NPT x 3/4 in. NPT with 1/2 in. NPT side outlets

Easy to install, adjust and service; all adjustments and connections are accessible from top of control
