Description
The RPM-E series cooling module can be used with the Hi-Velocity air handler, installed in many different positions. It is pre-piped with an adjustable, heat pump ready, thermal expansion valve and comes with a bleed port, sight glass, access port(s), freeze-stat, and two L brackets for mounting.
The RPM-E comes as a complete module and must be installed in the vertical position on the return air side of the air handler; the unit cannot be turned on its side and is a draw through unit only. The module offers multi-position airflow configurations for horizontal, highboy, or counter-flow configurations

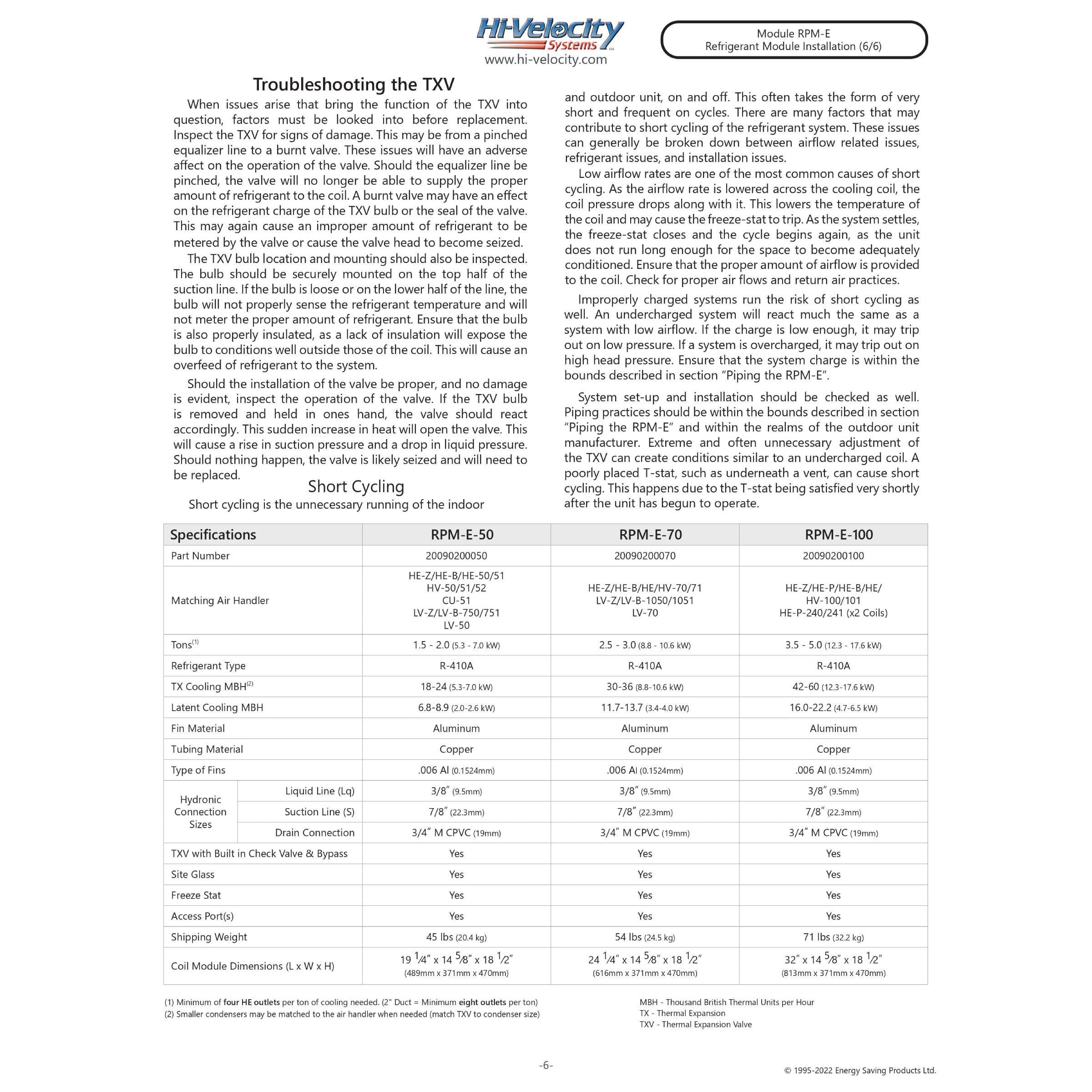

The TXV (Thermal Expansion Valve), sight glass, access port(s), and freeze-stat are already installed and are accessible through an easy-to-remove access hatch. The liquid and suction lines have male solder connections at a standard width making connections to the condenser lines quick and easy.
RPM-E Refrigerant Modules come with an integrated Heat Pump ready TX Valve with a built-in check valve, integrated access ports, integrated site glass, and an integrated freeze stat factory installed. RPM-E Series refrigerant modules are heat pump ready and come standard with R410a expansion valves.
Warranty: A Five (5) Year Limited Warranty is extended on all components in products manufactured exclusively by Energy Saving Products. These components include Motors, WEG controllers, Circuit Boards, Dampers, Zoning Controls, Blowers, Motor & Blower Assemblies, Heating Coils, Chilled Water Coils, and Air Conditioning Coils. A Three (3) Year Limited Warranty is extended on Electric Strip Heaters. A One (1) Year Limited Warranty is extended on replacement parts.
Matching Air Handler:
RPM-E-50 Matching Air Handlers are HE-Z/HE-B/HE-50/51 HV-50/51/52 CU-51 LV-Z/LV-B-750/751 LV-50
RPM-E-70 Matching Air Handlers are HE-Z/HE-B/HE/HV-70/71 LV-Z/LV-B-1050/1051 LV-70
RPM-E-100 Matching Air Handlers are HE-Z/HE-P/HE-B/HE/ HV-100/101 HE-P-240/241 (x2 Coils)
