Description
The cooling coil comes as a module and must be installed in the vertical position on the return air side of the air handler. For return air cut-out sizes, refer to Table 3 – Return air cutouts. Refrigerant modules come with two L mounting brackets, a thermal expansion valve, sight glass, access port(s), and an external freeze stat.
R series modules can be used on R-410A condensers; if R-410A refrigerant components are used. All Energy Saving Products R series modules are shipped with R-410A refrigerant components.

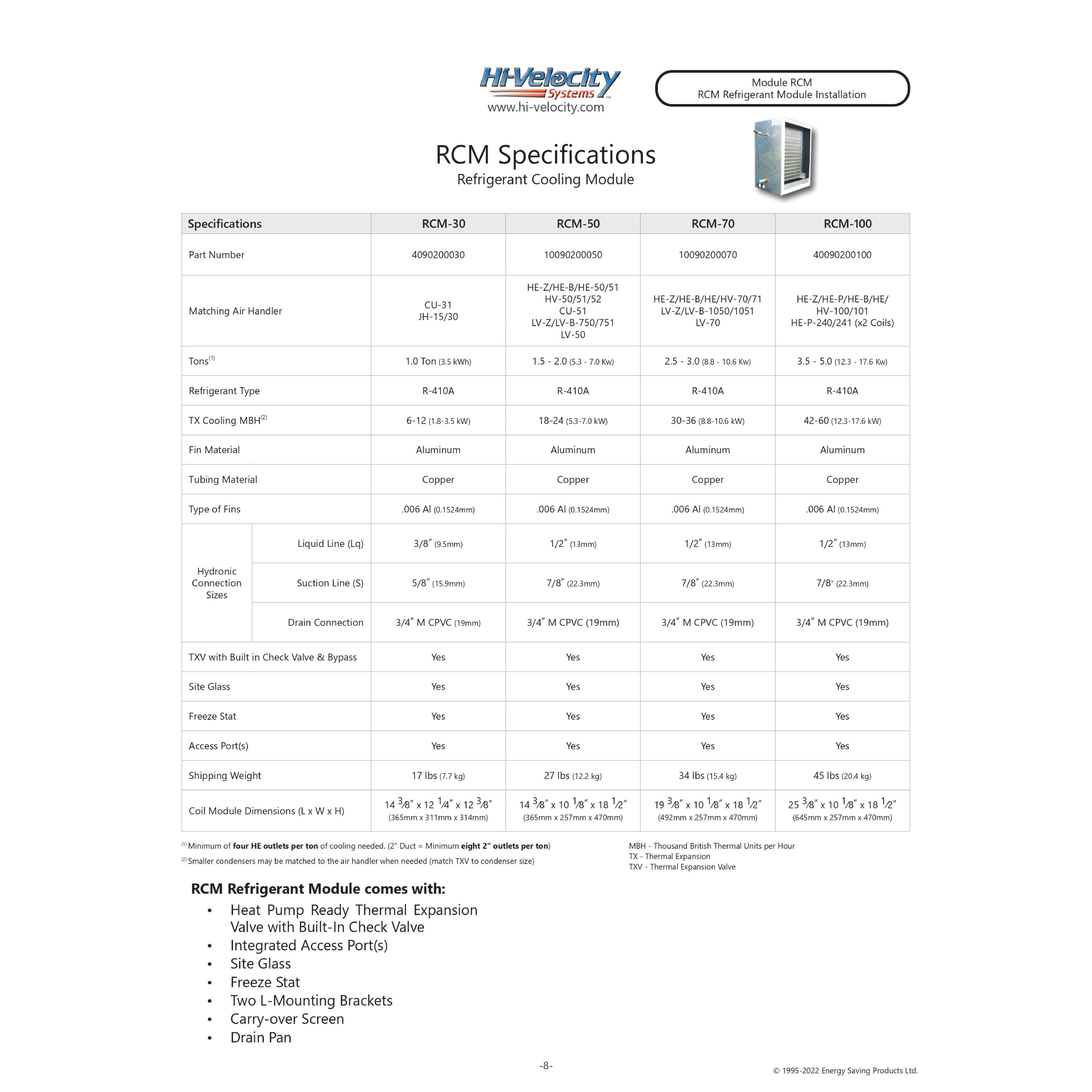

RCM Refrigerant Module comes with • Heat Pump Ready Thermal Expansion Valve with Built-In Check Valve • Integrated Access Port(s) • Site Glass • Freeze Stat • Two L-Mounting Brackets • Carry-over Screen • Drain Pan
Warranty: A Five (5) Year Limited Warranty is extended on all components in products manufactured exclusively by Energy Saving Products. These components include Motors, WEG Controller, Circuit Boards, Dampers, Zoning Controls, Blowers, Motor & Blower Assemblies, Heating Coils, Chilled Water Coils, and Air Conditioning Coils. A Three (3) Year Limited Warranty is extended on Electric Strip Heaters. A One (1) Year Limited Warranty is extended on replacement parts.
Matching Air Handler
RCM-30 matching air handlers are CU-31 JH-15/30
RCM-50 matching air handlers are HE-Z/HE-B/HE-50/51 HV-50/51/52 CU-51 LV-Z/LV-B-750/751 LV-50
RCM-70 matching air handlers are HE-Z/HE-B/HE/HV-70/71 LV-Z/LV-B-1050/1051 LV-70
RCM-100 matching air handlers are HE-Z/HE-P/HE-B/HE/ HV-100/101 HE-P-240/241 (x2 Coils)
