Description
The RBM Refrigerant Base Module is a modular cooling coil that matches and attaches easily to any Hi-Velocity Air Handler in any orientation.
The RBM Series cooling coil comes as a module and can be installed in the vertical or horizontal position on the return air side of the air handler. The RBM comes with T-mounting brackets, a thermal expansion valve, access port(s), and an external freeze stat. This module comes heat pump ready and has most components pre-piped. Only the access port(s) and freeze stat will need to be field installed.

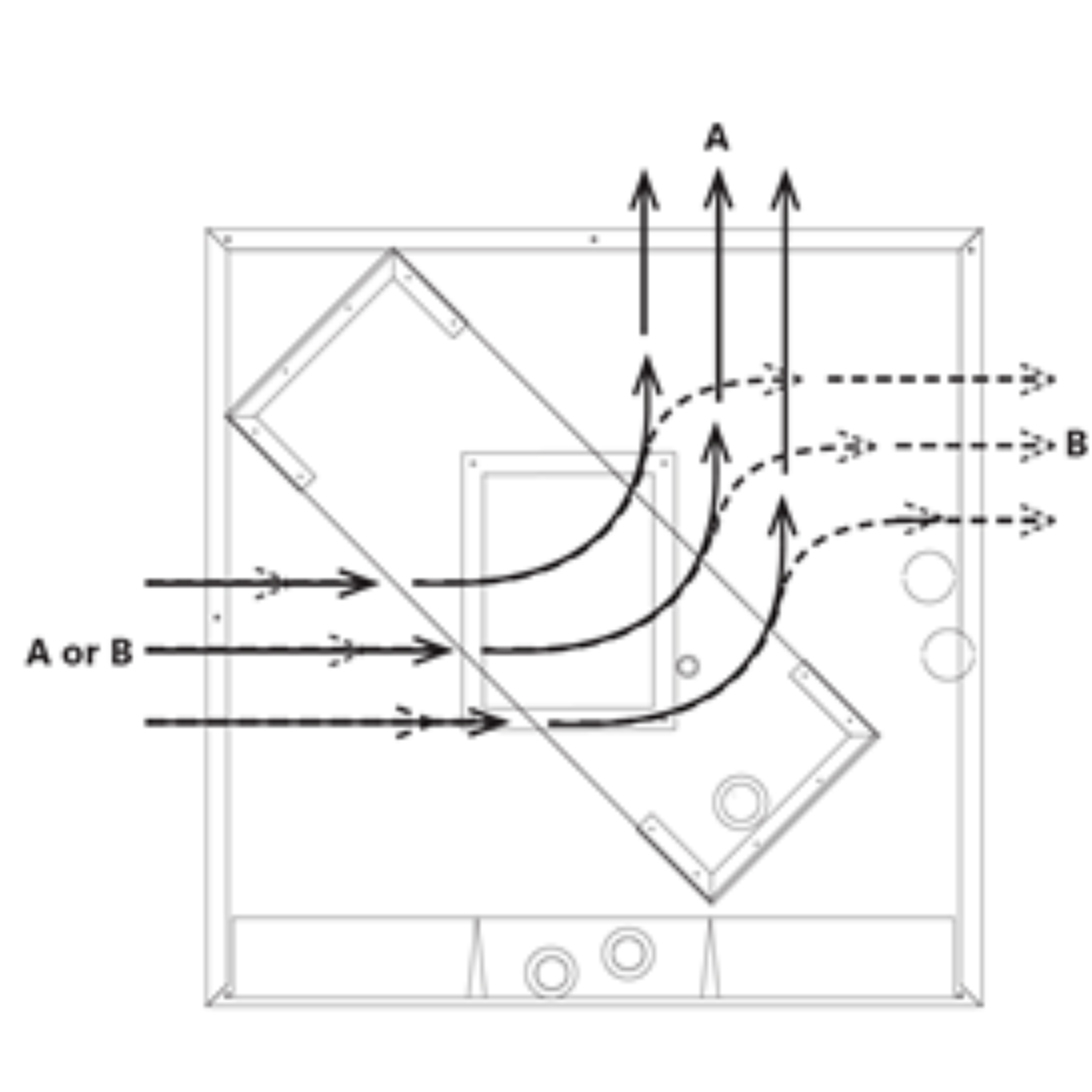

RBM Series refrigerant modules are heat pump ready and come standard with R410A expansion valves. Can be installed vertically or horizontally, allowing for many different installation orientations and multi-directional airflow.
Warranty: A Five (5) Year Limited Warranty is extended on all components in products manufactured exclusively by Energy Saving Products. These components include Motors, WEG Controller, Circuit Boards, Dampers, Zoning Controls, Blowers, Motor & Blower Assemblies, Heating Coils, Chilled Water Coils, and Air Conditioning Coils. A Three (3) Year Limited Warranty is extended on Electric Strip Heaters. A One (1) Year Limited Warranty is extended on replacement parts.
Matching Air Handler:
RBM-50 matching air handlers are: HE-Z / HE-B / HE / HV-50 / 51 CU-51 LV-Z / LV-B-750 / 751 LV-50
RBM-70 matching air handlers are: HE-Z / HE-B / HE / HV-70 / 71 LV-Z / LV-B-1050 / 1051 LV-70
RBM-100 matching air handlers are: HE-Z / HE-P / HE-B / HE / HV-100 /101 HE-P-240 /241 (x2 Coils)
