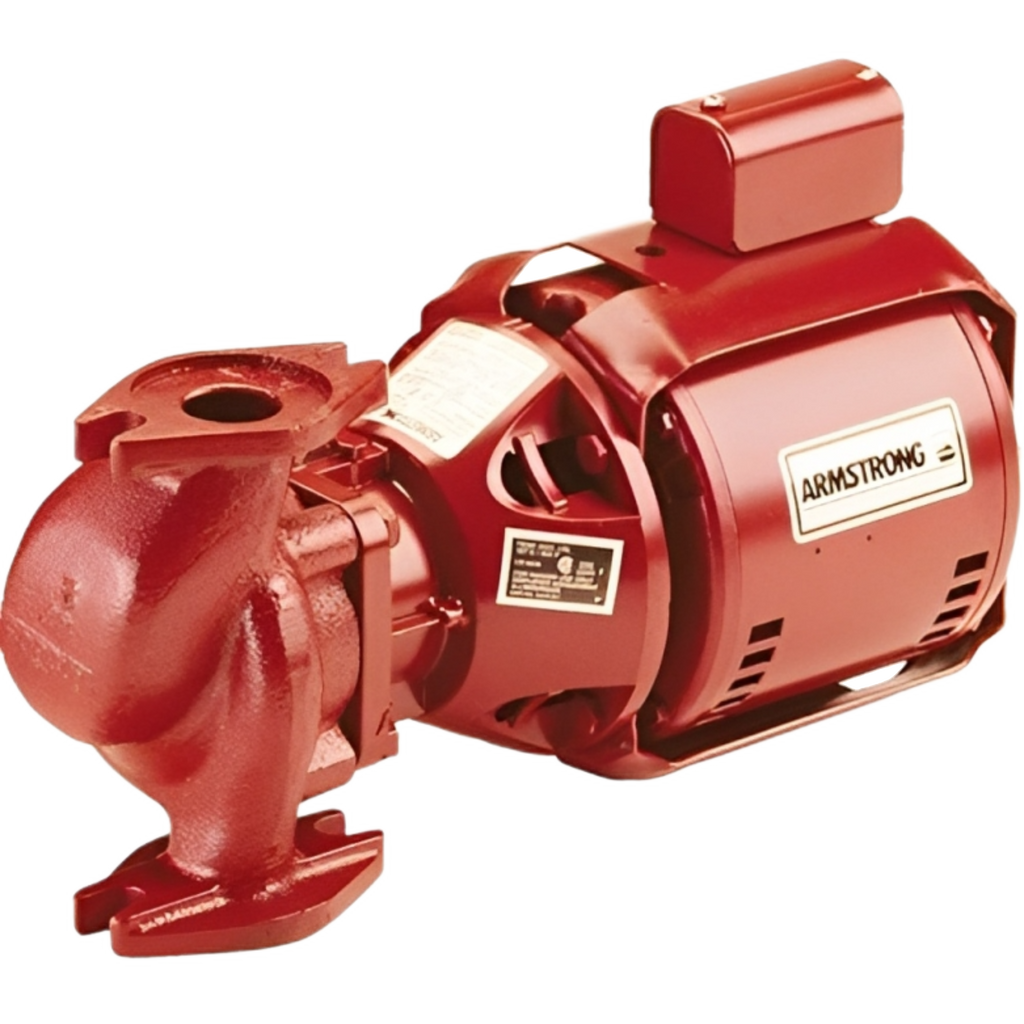

Armstrong 174036MF-113, Model S-45, Series S, In-Line Circulator Pump Cast Iron Without Flanges, 1/4 HP, 1 Phase 115V, 109 GPM Maximum

• The 174036-113 Armstrong S-45 Cast Iron Bronze Fitted Pump is part of the Armstrong Series S & H in-line circulators which are ideal for applications such as hydronic heating and cooling, domestic water systems, multi-stage zoning and general industrial service.
• Both bronze fitted and all bronze models are available in a wide range of sizes to match the performance requirements of any of these applications. Armstrong Series S & H circulators are durable and trusted products that have been used by HVAC professionals for decades.
• Material: Cast iron and lead-free bronze volutes.
• Radially-split body can be left in-line while servicing pump, eliminating disconnecting of pipes
• Oversized shaft made from stainless steel
• Balanced centrifugal impeller ensures maximum water delivery in the HVAC system
• Proven seal design made from strong and long-lasting materials for extended operating life
• Three-piece modular construction and back pull-out design for easy replacement of wear components, flange are not included
• Motor Type: ODP
• Maximum Flow: 109 GPM
• Maximum Head: 16 ft
• Maximum Operating Conditions: 148 psi at 107°C
• Maintenance free design which has permanently lubricated ball bearings and requires no maintenance at all
• Note: Flanges are sold separately.
