Description

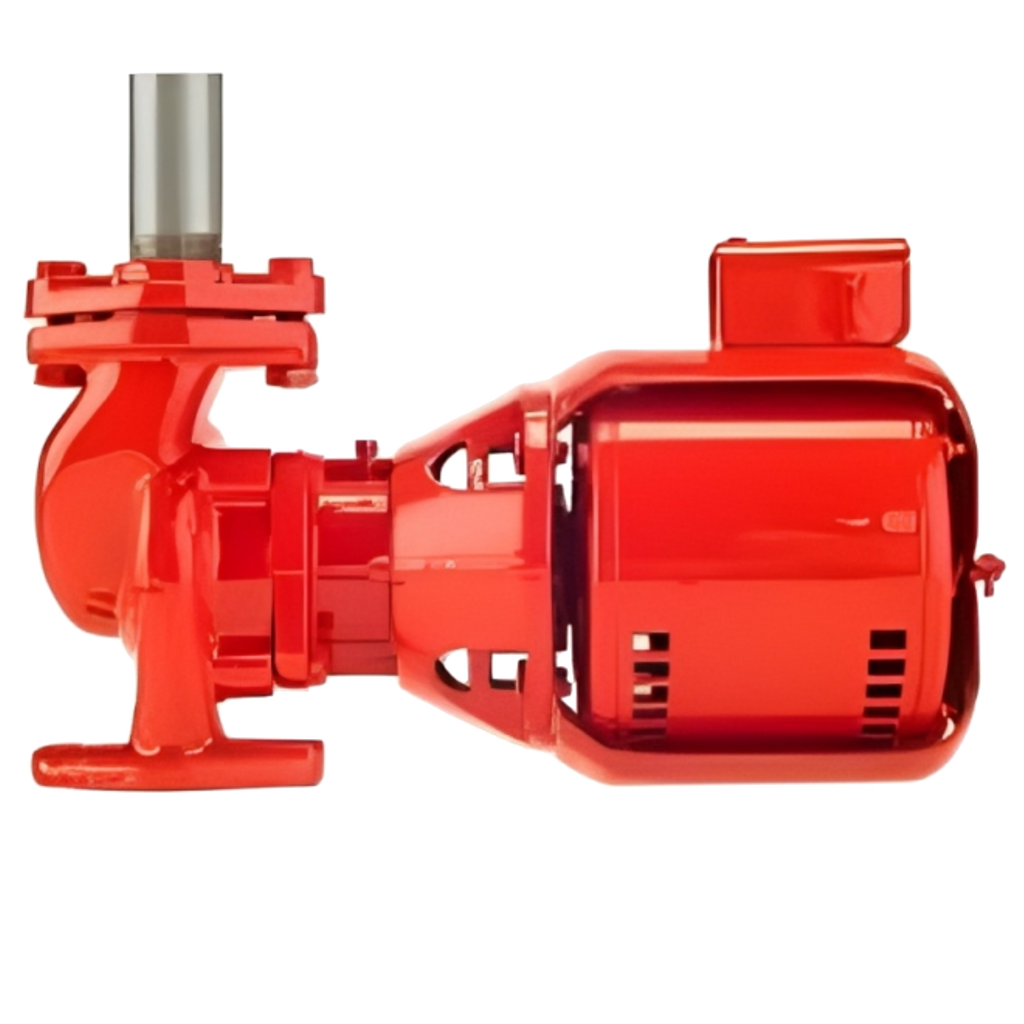

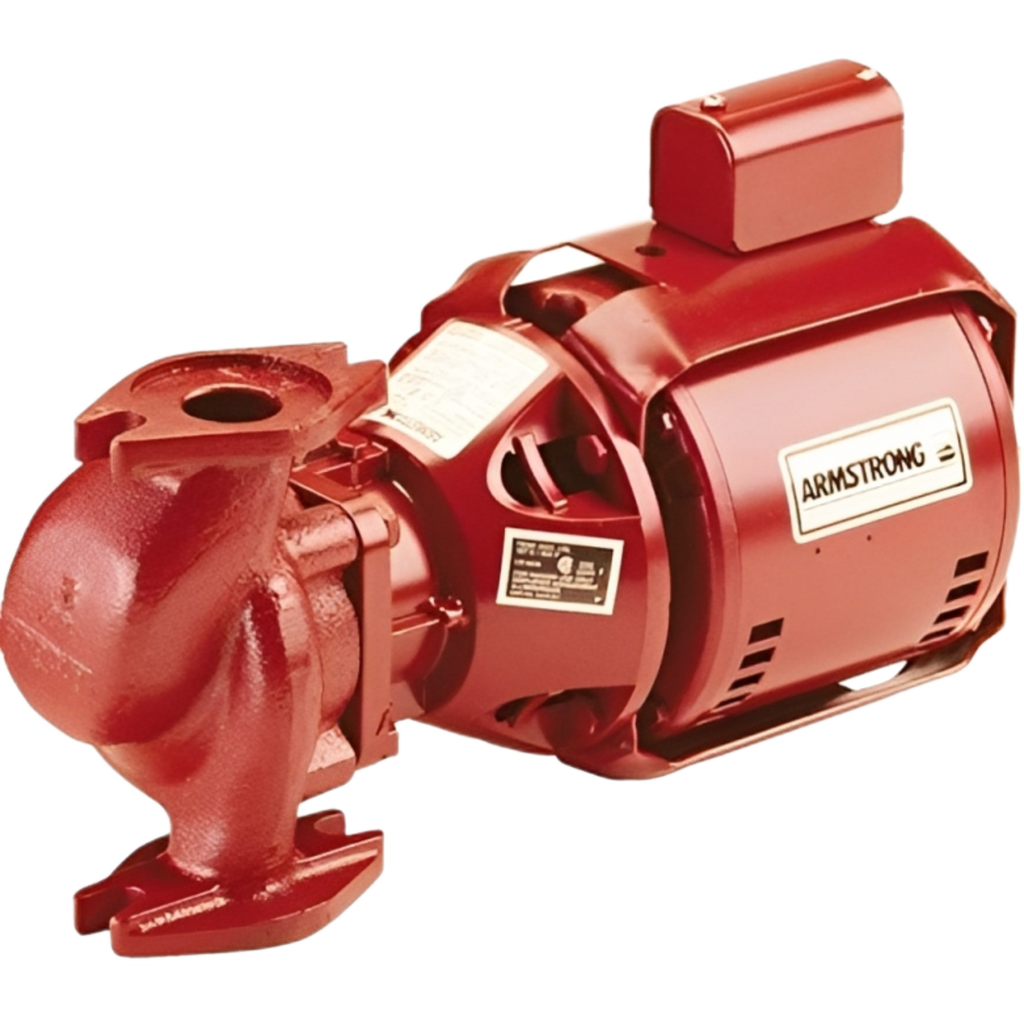

• The Armstrong Pump H-32 is a 1/6 HP, single phase circulator pump that features a radially-split bronze-fitted body, oversized stainless steel "maintenance free" shaft, centrifugal non-ferrous impeller, sintered silicon carbide seal, and modular construction. This model has a shaft and bearing module that can be easily removed and replaced.
• Armstrong Pump Series S & H circulator pump deploy a proven fixed-speed design that is cost-effective, durable, and easy to maintain. Models are available in the traditional sleeve-bearing design as well as the new, permanently-lubricated, maintenance-free design.
• The three-piece modular construction, which uses a universal replacement shaft and bearing module, and the back pull-out design allows for easy replacement of wear components.
• Series S & H in-line circulators are suitable for applications such as hydronic heating and cooling, domestic water systems, multi-stage zoning, and general industrial service.
• Motor Type: ODP
• Motor Phase: Single
• Connection Type: Flanged, Flange Not Included
• Maximum Operating Conditions: 148 psi at 225°F
• Maximum Head: 12 ft
• Maximum Fluid Temperature: 107°F
• Speed: 1800 RPM
