Description

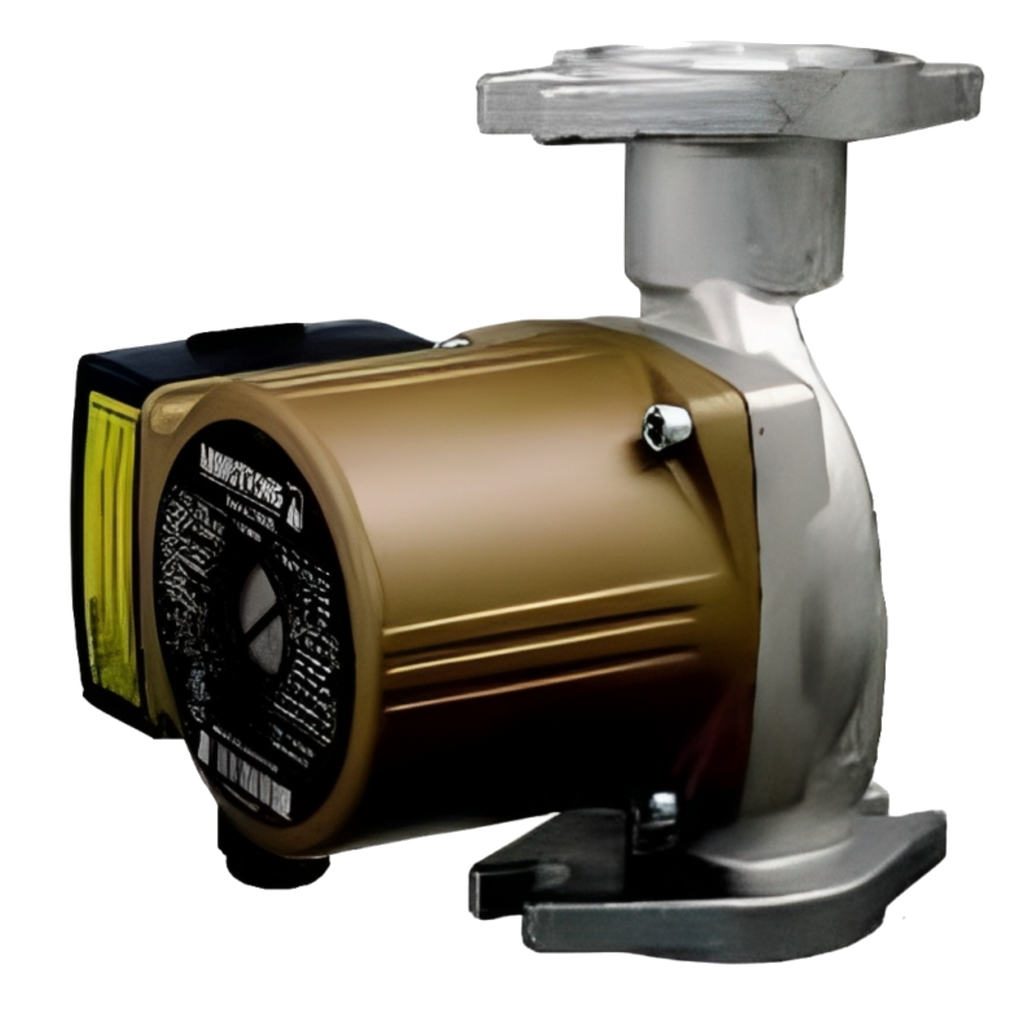

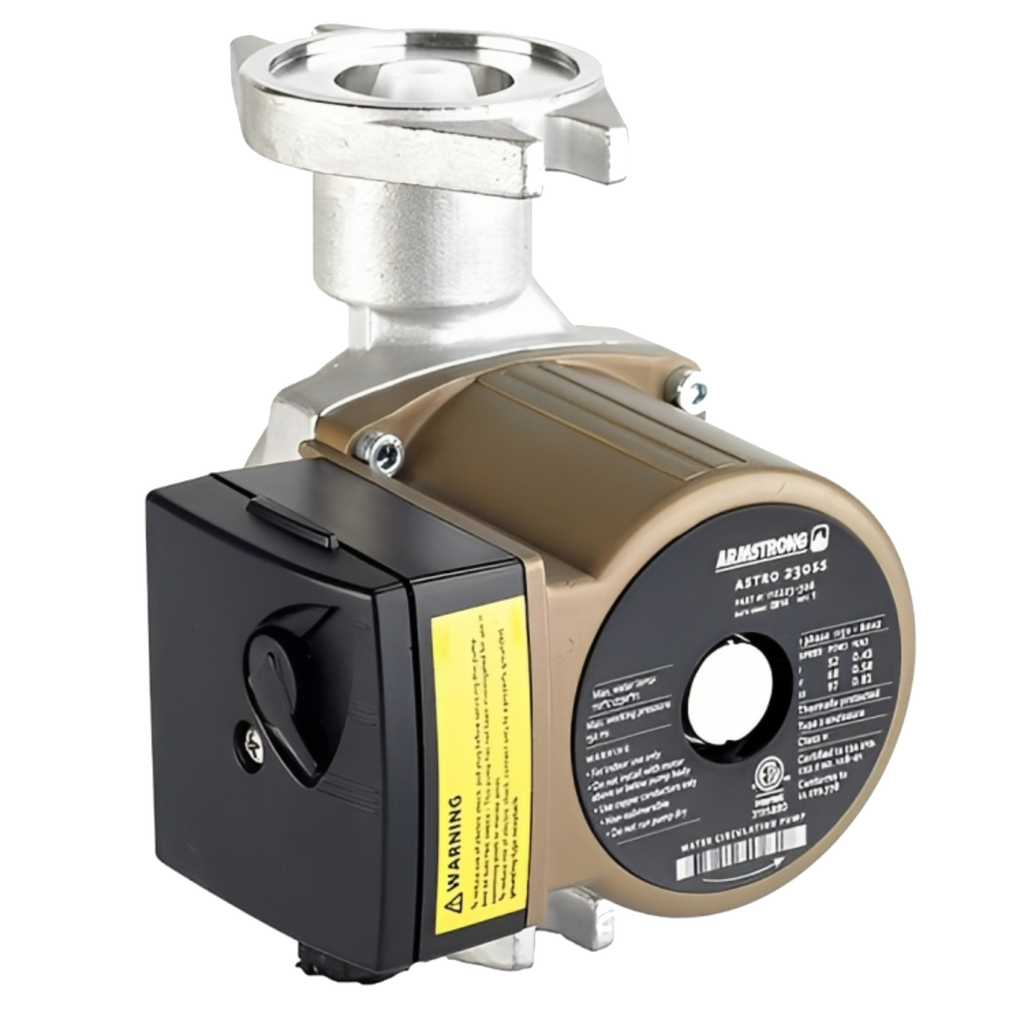

• The Armstrong Pump Astro 2 230SS is a variable three-speed, single phase stainless steel circulator pump for residential heating and cooling with a 3/4"-1-1/2" flanged connection.
• Astro 2 pumps have a flow rate of up to 64 GPM, a maximum of 42 feet of head, ceramic bearings and shaft, and a Noryl impeller. An e-coating on the inside of cast-iron volutes provides enhanced corrosion protection for improved reliability.
• A high-flow check valve is pre-installed for convenience. However, when installation does not call for a check valve, it can be removed in seconds.
• PDM gasket
• Removable check valve installed at pump outlet
• Open system body
• Flange with (2) 1/2 in. diameter bolt holes
• e-Coating on the inside of cast-iron volutes provides enhanced corrosion protection for improved reliability
• Flange-to-flange compatibility offers quick and easy exchange of competing models
• Large wiring box and convenient plug-in terminal strip save time
• High-flow check valve, is pre-installed for convenience, where the installation does not call for a check valve, it can be removed in seconds
• Connection Type: Flanged, Flanges are not Included
• Connection Size: 1", 1-1/2", 1-1/4", 3/4"
• Motor Speed: 3
• Motor Enclosure: ODP
• Motor Phase: Single
• Motor RPM: Variable
• Working Pressure: 150 psi
• Max Temp: 110 C
